650V integrated power switch designed for 60W offline flyback converters. Features abnormal overcurrent protection (OCP) and a maximum duty cycle of 75%. Operates within a wide temperature range of -40°C to 125°C, with a minimum input voltage of 26V and a maximum output power of 70W. Packaged in a TO-220-6 through-hole mount, this RoHS compliant component is supplied in a rail/tube of 400 units.
PackageTO-220-6
Current2.5mA
Resistance1.8R
MountingThrough Hole
Quick Jump:
Technical Specifications
Onsemi FSGM0565RBWDTU technical specifications.
General
| Package/Case | TO-220-6 |
| Min Breakdown Voltage | 650V |
| Max Duty Cycle | 75% |
| Min Input Voltage | 26V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Power | 70W |
| Max Power Dissipation | 45W |
| Max Supply Current | 2mA |
| Max Supply Voltage | 26V |
| Min Supply Voltage | 7V |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Current | 2.75A |
| Output Voltage | 650V |
| Package Quantity | 400 |
| Packaging | Rail/Tube |
| Power Dissipation | 45W |
| Radiation Hardening | No |
| Resistance | 1.8R |
| RoHS Compliant | Yes |
| Supply Current | 2.5mA |
| Weight | 1.6g |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi FSGM0565RBWDTU Datasheet
Download the complete datasheet for Onsemi FSGM0565RBWDTU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

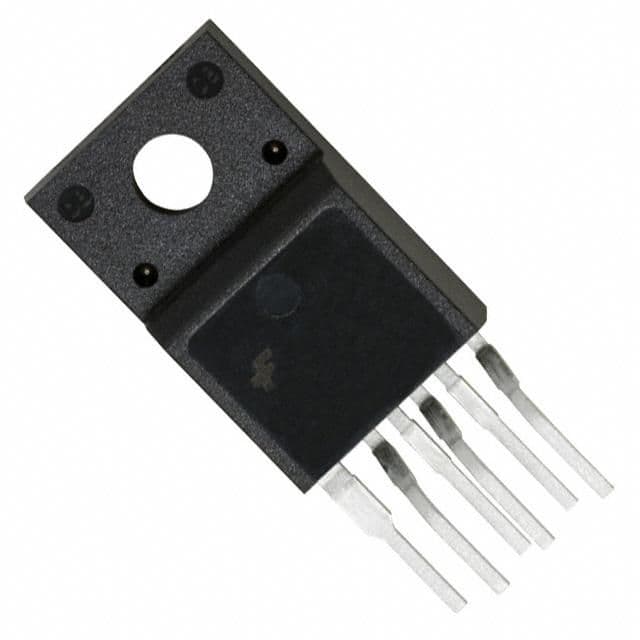

Product Images
