650V integrated power switch for 7W offline buck converters. Features a non-isolated flyback topology, 450mA output current, and a maximum duty cycle of 77%. Operates within a supply voltage range of 6.3V to 26V, with a low supply current of 350uA. DIP package, surface mountable, and RoHS compliant.
PackageDIP
Current450mA
MountingSurface Mount
Power7W
Quick Jump:
Technical Specifications
Onsemi FSL306LRN technical specifications.
General
| Package/Case | DIP |
| Current | 450mA |
| Fall Time | 26.1ns |
| Height | 3.42mm |
| Isolation | Non-Isolated |
| Lead Free | Lead Free |
| Length | 9.77mm |
| Min Breakdown Voltage | 650V |
| Max Duty Cycle | 77% |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Power | 7W |
| Max Supply Current | 350uA |
| Max Supply Voltage | 26V |
| Min Supply Voltage | 6.3V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Operating Supply Current | 800uA |
| Output Current | 450mA |
| Output Power | 7W |
| Output Voltage | 265V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | FSL306LR |
| Topology | Flyback |
| Weight | 0.5012g |
| Width | 6.47mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi FSL306LRN Datasheet
Download the complete datasheet for Onsemi FSL306LRN to view detailed technical specifications.
No datasheet is available for this part.

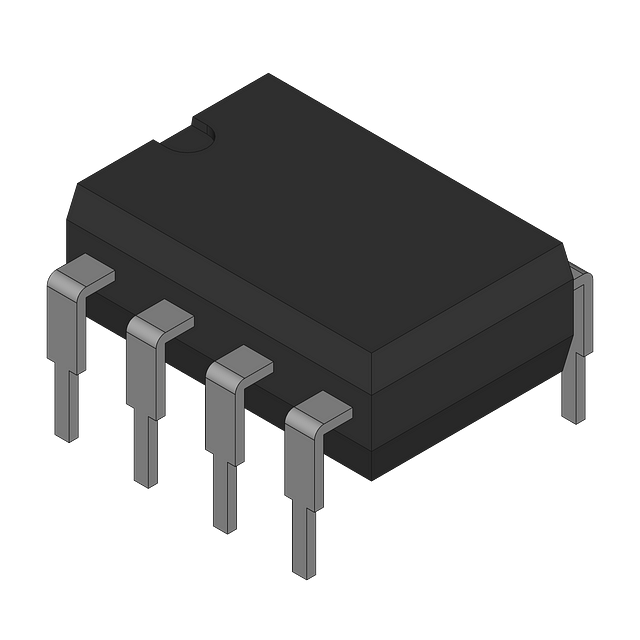

Product Images
