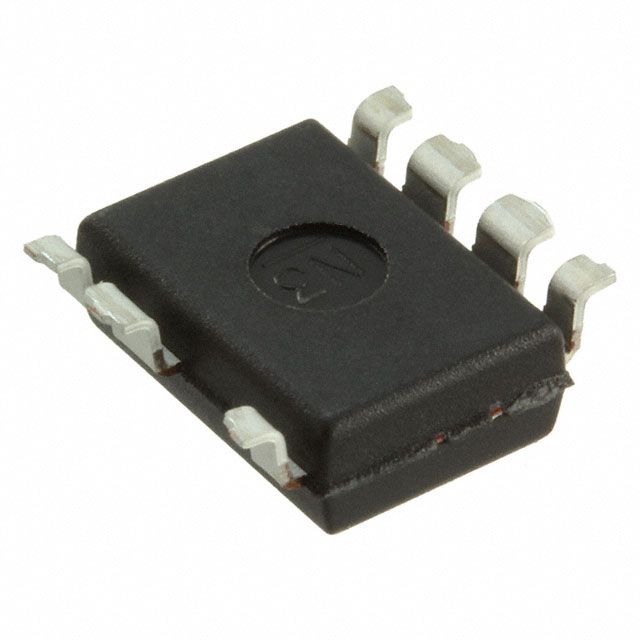

700V integrated power switch for 6W offline flyback converters. Features valley switching control, 60% duty cycle, and over-temperature fault protection. Operates from a 6V to 20V supply with a maximum output power of 6W and 1.38W power dissipation. Surface mountable in an SMD/SMT package, this RoHS compliant component offers a 700V output voltage and 280mA output current.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi FSQ510MX datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SMD/SMT |
| Duty Cycle | 60% |
| Fault Protection | Over Temperature |
| Min Breakdown Voltage | 700V |
| Max Duty Cycle | 66% |
| Max Operating Temperature | 130°C |
| Min Operating Temperature | -40°C |
| Max Output Power | 6W |
| Max Power Dissipation | 1.38W |
| Max Supply Current | 1mA |
| Max Supply Voltage | 20V |
| Min Supply Voltage | 6V |
| Mount | Surface Mount |
| Nominal Input Voltage | 20V |
| Number of Outputs | 1 |
| On-State Resistance | 28R |
| Output Current | 280mA |
| Output Power | 9W |
| Output Voltage | 700V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 1.38W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | FPS™ |
| Supply Current | 800uA |
| Topology | Flyback |
| Weight | 0.7767g |
| RoHS | Compliant |
