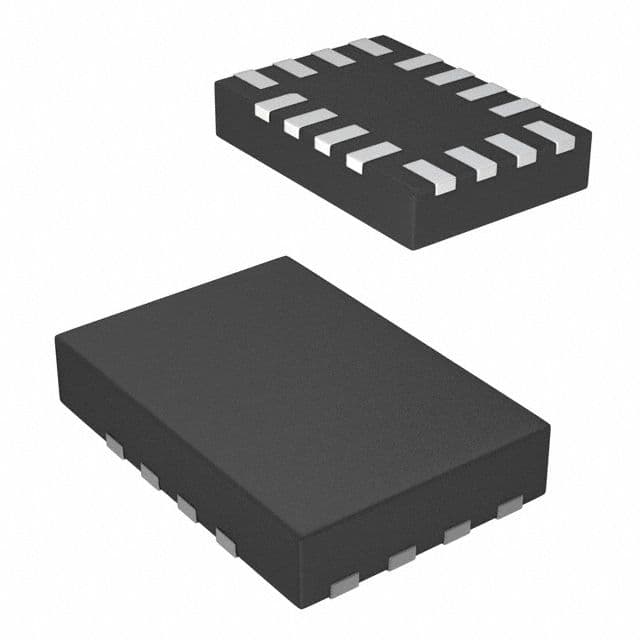

The FSUSB73UMX is a surface mount multiplexer with a single output and three inputs. It operates over a temperature range of -40°C to 85°C and is powered by a single supply voltage of 3V. The device has an on-state resistance of 6.5 ohms and a supply current of 9 microamperes. It is compliant with RoHS regulations and is available in a tape and reel packaging with 5000 units per package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi FSUSB73UMX datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Onsemi FSUSB73UMX technical specifications.
| Height | 0.5mm |
| Lead Free | Lead Free |
| Length | 1.8mm |
| Logic Function | Multiplexer |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | -500mV |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Inputs | 3 |
| Number of Outputs | 1 |
| On-State Resistance | 6.5R |
| Operating Supply Voltage | 3V |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Resistance | 6.5R |
| RoHS Compliant | Yes |
| Supply Current | 9uA |
| Supply Type | Single |
| Voltage | 4.4V |
| Weight | 0.00654g |
| Width | 2.6mm |
| RoHS | Compliant |
