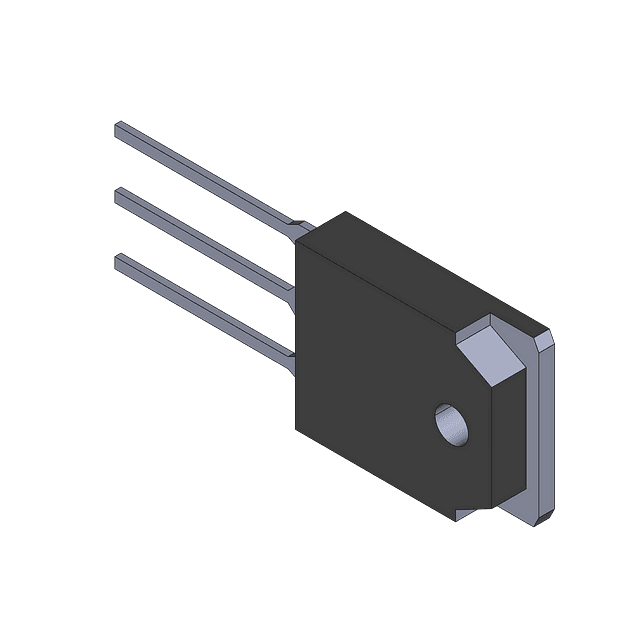

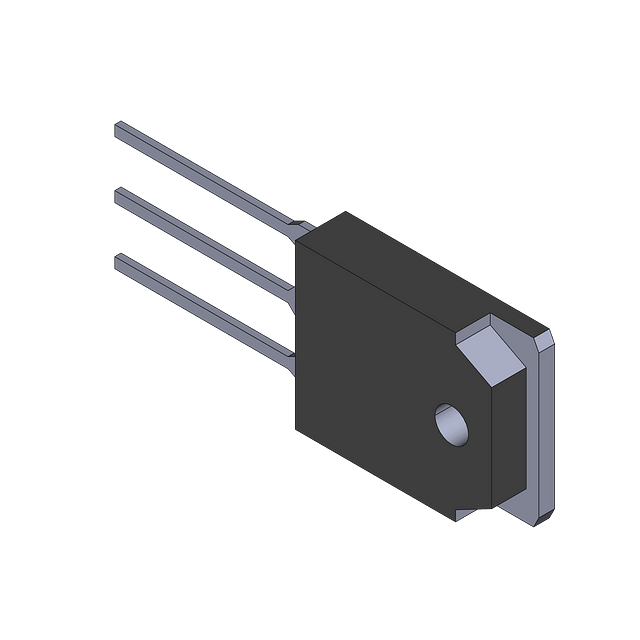

The IRFP460C is a N-CHANNEL Junction Field-Effect Transistor with a maximum operating temperature of 150°C and a minimum operating temperature of -55°C. It has a maximum power dissipation of 235W and a drain to source breakdown voltage of 500V. The device is packaged in a through hole package and is lead free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi IRFP460C datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Continuous Drain Current (ID) | 20A |
| Current | 20A |
| Current Rating | 20A |
| Drain to Source Breakdown Voltage | 500V |
| Drain to Source Resistance | 240mR |
| Drain to Source Voltage (Vdss) | 500V |
| Fall Time | 180ns |
| Gate to Source Voltage (Vgs) | 30V |
| Input Capacitance | 6nF |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 235W |
| Mount | Through Hole |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Polarity | N-CHANNEL |
| Power Dissipation | 235W |
| Rds On Max | 240mR |
| Turn-Off Delay Time | 380ns |
| Voltage | 500V |
| DC Rated Voltage | 500V |
| RoHS | Not Compliant |
