General purpose rectifier featuring 15A average rectified current and 600V repetitive reverse voltage. This single element diode offers a 40ns reverse recovery time and 62pF capacitance. Designed for through-hole mounting in a TO-247 package, it operates from -55°C to 175°C with a 150W power dissipation. Maximum forward surge current is rated at 200A.
PackageTO-247
Capacitance62pF
Current Rating15A
MountingThrough Hole
Quick Jump:
Technical Specifications
Onsemi ISL9R1560G2 technical specifications.
General
Average Rectified Current
15A
Capacitance
62pF
Package/Case
TO-247
Current Rating
15A
Element Configuration
Single
Forward Current
15A
Height
20.82mm
Lead Free
Lead Free
Length
15.87mm
Max Forward Surge Current (Ifsm)
200A
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
600V
Max Reverse Current
100uA
Max Reverse Voltage (DC)
600V
Max Surge Current
200A
Mount
Through Hole
Output Current
15A
Package Quantity
30
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
200A
Polarity
Standard
Power Dissipation
150W
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Recovery Time
40ns
Reverse Voltage
600V
RoHS Compliant
Yes
Series
Stealth™
DC Rated Voltage
600V
Weight
6.33g
Width
4.82mm
Compliance
RoHS
Compliant
Datasheet
Onsemi ISL9R1560G2 Datasheet
Download the complete datasheet for Onsemi ISL9R1560G2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

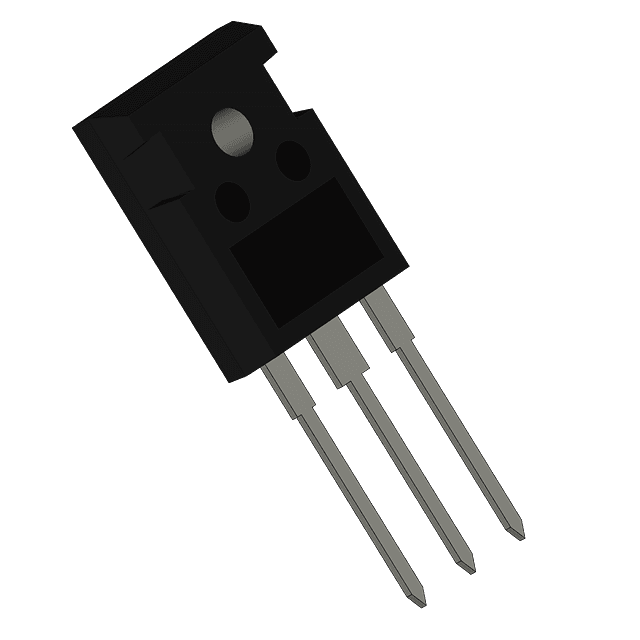

Product Images
