The J175 is a P-CHANNEL junction field-effect transistor with a TO-92 package, rated for -30V DC and 50mA continuous drain current. It has a maximum power dissipation of 350mW and operates over a temperature range of -55°C to 150°C. The device is lead-free and RoHS compliant.
PackageTO-92
Current Rating50mA
MountingThrough Hole
PolarityP-CHANNEL
Quick Jump:
Technical Specifications
Onsemi J175 technical specifications.
General
| Package/Case | TO-92 |
| Continuous Drain Current (ID) | -60mA |
| Current Rating | 50mA |
| Drain to Source Resistance | 125R |
| Drain to Source Voltage (Vdss) | 30V |
| Gate to Source Voltage (Vgs) | 30V |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 350mW |
| Mount | Through Hole |
| Package Quantity | 2000 |
| Packaging | Bulk |
| Polarity | P-CHANNEL |
| Power Dissipation | 350mW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| DC Rated Voltage | -30V |
| Weight | 0.201g |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi J175 Datasheet
Download the complete datasheet for Onsemi J175 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

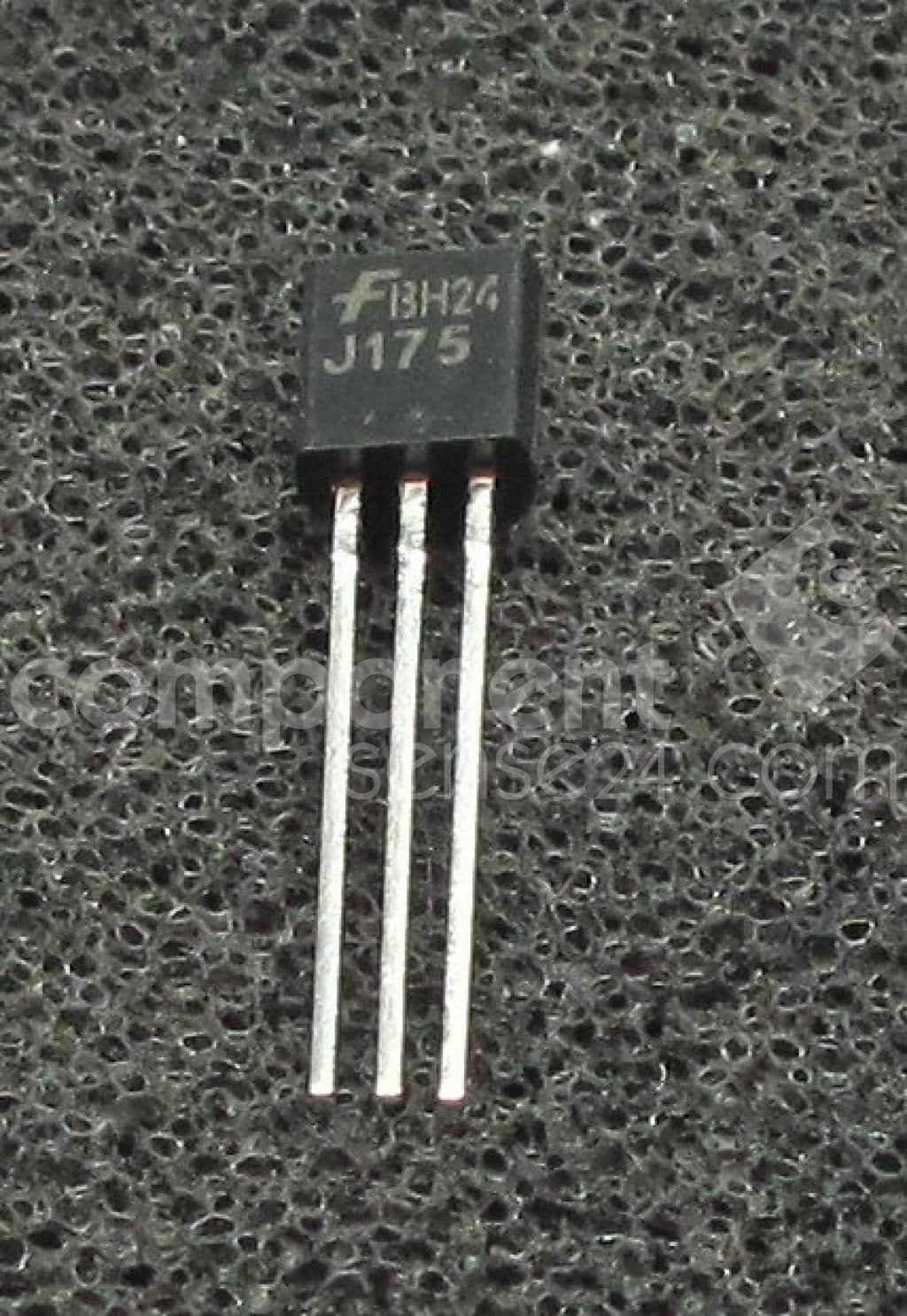

Product Images
