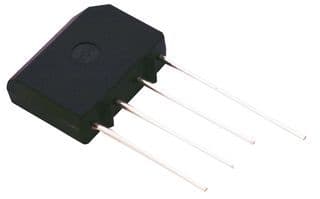

1.5A bridge rectifier for general purpose applications. Features a 200V repetitive reverse voltage rating and 1.5A forward current. Operates from -55°C to 165°C with a maximum power dissipation of 3.5W. Includes a 50A surge current capability and a 15pF capacitance. Packaged in a SIP for through-hole mounting. RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi KBP02M datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Onsemi KBP02M technical specifications.
| Average Rectified Current | 1.5A |
| Capacitance | 15pF |
| Package/Case | SIP |
| Current Rating | 1.5A |
| Forward Current | 1.5A |
| Height | 12.7mm |
| Lead Free | Lead Free |
| Length | 15.24mm |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 3.5W |
| Max Repetitive Reverse Voltage (Vrrm) | 200V |
| Max Reverse Current | 5uA |
| Max Reverse Leakage Current | 5uA |
| Max Surge Current | 50A |
| Mount | Through Hole |
| Number of Elements | 1 |
| Output Current | 1.5A |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Peak Non-Repetitive Surge Current | 50A |
| Power Dissipation | 3.5W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | KBP02M |
| Termination | Through Hole |
| DC Rated Voltage | 200V |
| Weight | 0.053546oz |
| Width | 5.08mm |
| RoHS | Compliant |
