NPN Epitaxial Silicon Transistor for surface mount applications. Features a 25V collector-emitter voltage (VCEO) and 800mA maximum collector current. Offers a minimum DC current gain (hFE) of 100 and a transition frequency of 120MHz. Packaged in SOT-23 for tape and reel distribution, with a maximum power dissipation of 200mW. Operates across a temperature range of -55°C to 150°C.
Frequency120MHz
PackageSOT-23
Current Rating800mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi KSC3265YMTF technical specifications.
General
| Package/Case | SOT-23 |
| Collector Base Voltage (VCBO) | 30V |
| Collector Emitter Breakdown Voltage | 25V |
| Collector Emitter Saturation Voltage | 400mV |
| Collector Emitter Voltage (VCEO) | 25V |
| Collector-emitter Voltage-Max | 400mV |
| Current Rating | 800mA |
| Emitter Base Voltage (VEBO) | 5V |
| Frequency | 120MHz |
| Gain Bandwidth Product | 120MHz |
| Height | 0.97mm |
| hFE Min | 100 |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Max Breakdown Voltage | 25V |
| Max Collector Current | 800mA |
| Max Frequency | 120MHz |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 200mW |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | NPN |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Transition Frequency | 120MHz |
| DC Rated Voltage | 25V |
| Weight | 0.03g |
| Width | 1.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi KSC3265YMTF Datasheet
Download the complete datasheet for Onsemi KSC3265YMTF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

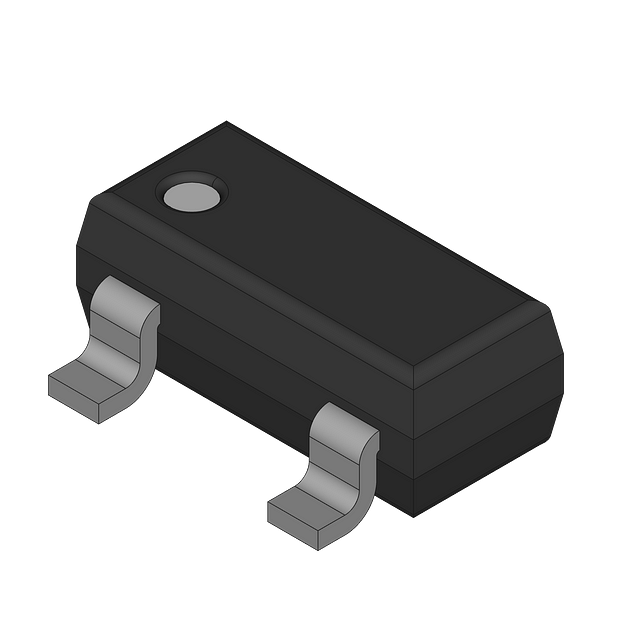

Product Images
