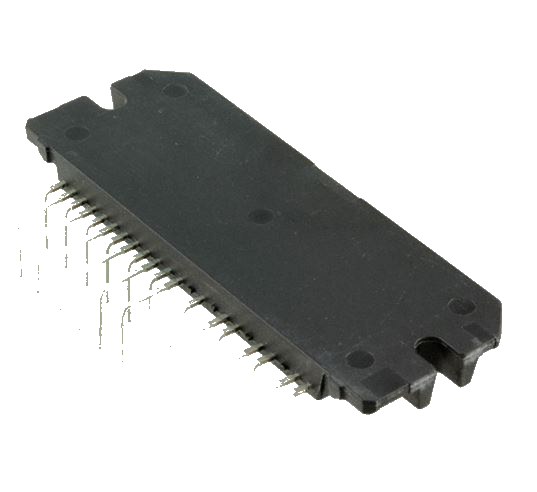

PWM Inuput Forward/Reverse Brush Motor Driver, SIP14 26.8x11.8 / SIP14HZ, 1000-FNFLD
Checking distributor stock and pricing after the page loads.
| Package/Case | SIP |
| Height | 11.8mm |
| Interface | Parallel, PWM |
| Lead Free | Lead Free |
| Length | 27mm |
| Max Collector Current | 3A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 3V |
| Motor Type | Brushed |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Current | 3A |
| Package Quantity | 20 |
| Packaging | Bulk |
| Power Dissipation | 3.5W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 75uA |
| Technology | BIPOLAR |
| Width | 4mm |
| RoHS | Compliant |
These are design resources that include the Onsemi LB11651-E
Notice of discontinuance for various Onsemi products due to the closure of the 5-inch production line and the elimination of Hydrazine at the Niigata (OSNC) facility.
