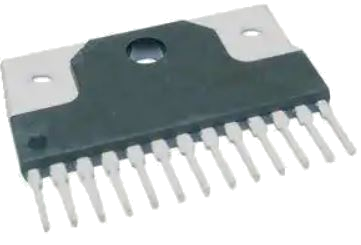

The LB1947-E is a bipolar power switch with a maximum operating temperature of 85°C and a minimum operating temperature of -20°C. It has a maximum supply voltage of 45V and a minimum supply voltage of 10V. The device is mounted through a hole and packaged in a SIP package. It is lead-free and RoHS compliant, with a supply current of 16mA and an output current of 2A.
Checking distributor stock and pricing after the page loads.
Onsemi LB1947-E technical specifications.
| Package/Case | SIP |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Supply Voltage | 45V |
| Min Supply Voltage | 10V |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Current | 2A |
| Package Quantity | 160 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 16mA |
| Technology | BIPOLAR |
| RoHS | Compliant |
No datasheet is available for this part.
