Technical Specifications
Onsemi LM2575D2T-ADJG technical specifications.
General
| Package/Case | TO-263-6 |
| Efficiency | 77% |
| Lead Free | Lead Free |
| Max Input Voltage | 40V |
| Min Input Voltage | 4.75V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Max Output Voltage | 37V |
| Min Output Voltage | 1.23V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 40V |
| Output Current | 1A |
| Output Type | Adjustable |
| Output Voltage | 37V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Switching Frequency-Max | 52kHz |
| Synchronous Rectifier | No |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi LM2575D2T-ADJG Datasheet
Download the complete datasheet for Onsemi LM2575D2T-ADJG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

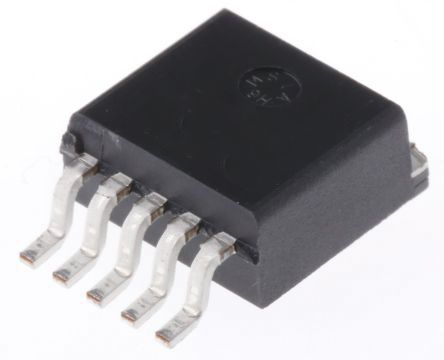

Product Images
