The LM2596TADJG is an adjustable DC/DC controller from Onsemi, packaged in a TO-220-5 lead free package. It operates over a temperature range of -40°C to 125°C and is RoHS compliant. The device has a maximum input voltage of 45V and an output current of 3A. It is available in a packaging quantity of 50 units per rail/ tube.
PackageTO-220-5
MountingThrough Hole
Quick Jump:
Technical Specifications
Onsemi LM2596TADJG technical specifications.
General
| Package/Case | TO-220-5 |
| Lead Free | Lead Free |
| Max Input Voltage | 45V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Current | 3A |
| Output Type | Adjustable |
| Output Voltage | 37V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi LM2596TADJG Datasheet
Download the complete datasheet for Onsemi LM2596TADJG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

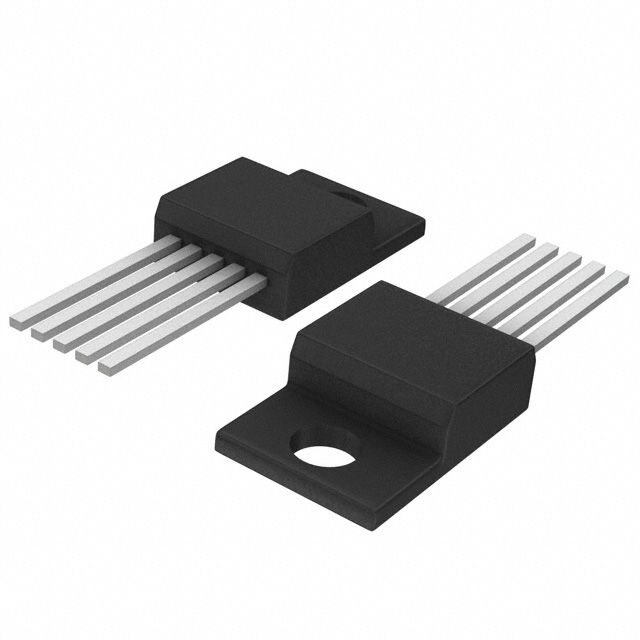

Product Images
