Quad comparator IC featuring a 36V maximum supply voltage and 1.3µs response time. This general-purpose, bipolar technology component offers 4 independent channels with a 100dB voltage gain. Operating across a -40°C to +105°C temperature range, it is housed in a 14-pin PDIP package and is RoHS and Halogen Free compliant. Maximum power dissipation is 1W with a typical supply current of 2mA.
PackagePDIP
Current2mA
Power1W
Quick Jump:
Technical Specifications
Onsemi LM2901NG technical specifications.
General
| Amplifier Type | COMPARATOR |
| Package/Case | PDIP |
| Halogen Free | Halogen Free |
| Height | 3.68mm |
| Input Bias Current | 250nA |
| Input Offset Voltage (Vos) | 7mV |
| Lead Free | Lead Free |
| Length | 19.56mm |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 1.5V |
| Max Input Current | 250nA |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1W |
| Max Supply Current | 2mA |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 3V |
| Number of Channels | 4 |
| Number of Elements | 4 |
| Output Current | 16mA |
| Output Current per Channel | 16mA |
| Output Type | TTL |
| Package Quantity | 500 |
| Packaging | Rail/Tube |
| Power Dissipation | 1W |
| Quiescent Current | 2.5mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Response Time | 1.3us |
| RoHS Compliant | Yes |
| Supply Current | 2mA |
| Technology | BIPOLAR |
| Type | General Purpose |
| Voltage Gain | 100dB |
| Width | 6.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi LM2901NG Datasheet
Download the complete datasheet for Onsemi LM2901NG to view detailed technical specifications.
No datasheet is available for this part.

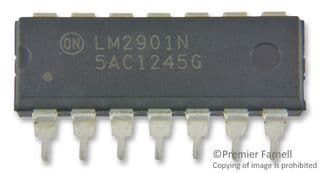

Product Images
