Technical Specifications
Onsemi LM317BD2TG technical specifications.
General
| Halogen Free | Halogen Free |
| Height | 4.57mm |
| Lead Free | Lead Free |
| Length | 10.24mm |
| Max Input Voltage | 40V |
| Min Input Voltage | 4.2V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Number of Outputs | 1 |
| Output Current | 1.5A |
| Output Type | Adjustable |
| Output Voltage | 37V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 80dB |
| RoHS Compliant | Yes |
| Series | LM317 |
| Weight | 0.079014oz |
| Width | 9.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi LM317BD2TG Datasheet
Download the complete datasheet for Onsemi LM317BD2TG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

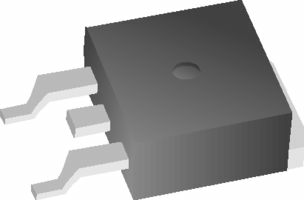

Product Images
