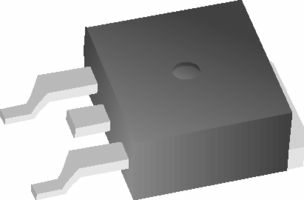

Adjustable positive linear voltage regulator, 1.5A output current, 40V maximum input voltage, and 37V maximum output voltage. Features a 2.25V dropout voltage and 80dB Power Supply Rejection Ratio (PSRR). Operates from -40°C to +125°C in a 3-lead D2PAK surface mount package. Halogen and lead-free compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi LM317BD2TR4G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | D2PAK |
| Dropout Voltage | 2.25V |
| Halogen Free | Halogen Free |
| Height | 4.57mm |
| Lead Free | Lead Free |
| Length | 10.24mm |
| Min Current Limit | 1.5A |
| Max Input Voltage | 40V |
| Min Input Voltage | 4.2V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.5A |
| Max Output Voltage | 37V |
| Min Output Voltage | 1.2V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 1.5A |
| Output Type | Adjustable |
| Output Voltage | 37V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 80dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Voltage | 1.3V |
| RoHS Compliant | No |
| Series | LM317 |
| Width | 9.35mm |
| RoHS | Compliant |
