Adjustable positive linear voltage regulator with 500 mA output current and 2% accuracy. Features a high Power Supply Rejection Ratio (PSRR) of 80 dB and a wide input voltage range from 4.2V to 40V. Operates across a temperature range of -40°C to 125°C, with a dropout voltage of 2.1V. Packaged in a TO-220-3 through-hole mount configuration, this RoHS compliant component is supplied in a 50-piece tube.
PackageTO-220-3
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Onsemi LM317MABTG technical specifications.
General
| Accuracy | 2% |
| Package/Case | TO-220-3 |
| Dropout Voltage | 2.1V |
| Halogen Free | Halogen Free |
| Height | 15.75mm |
| Lead Free | Lead Free |
| Length | 10.28mm |
| Max Input Voltage | 40V |
| Min Input Voltage | 4.2V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 900mA |
| Max Output Voltage | 37V |
| Min Output Voltage | 1.2V |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 500mA |
| Output Type | Adjustable |
| Output Voltage | 37V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 80dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Voltage | 1.275V |
| RoHS Compliant | Yes |
| Width | 4.82mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi LM317MABTG Datasheet
Download the complete datasheet for Onsemi LM317MABTG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

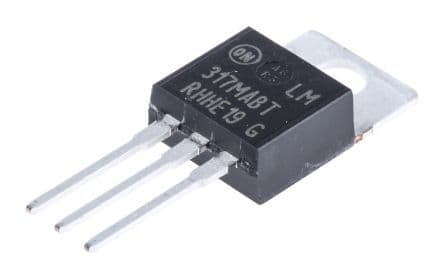

Product Images
