Dual comparator IC featuring low input offset voltage of 5mV and low input bias current of 250nA. Operates from a single or dual supply with a wide voltage range of 1V to 36V. Offers 2 independent channels with a maximum output current of 18mA per channel. Packaged in a 2-channel DIP for through-hole mounting, with a maximum power dissipation of 570mW. RoHS compliant and constructed with BIPOLAR technology.
PackageDIP
Current1mA
MountingThrough Hole
Power570mW
Quick Jump:
Technical Specifications
Onsemi LM393N technical specifications.
General
| Package/Case | DIP |
| Height | 3.3mm |
| Input Bias Current | 250nA |
| Input Offset Voltage (Vos) | 5mV |
| Lead Free | Lead Free |
| Length | 10.15mm |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 1V |
| Max Input Current | 250nA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 570mW |
| Max Supply Current | 2mA |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 2V |
| Mount | Through Hole |
| Natural Thermal Resistance | 260°C/W |
| Nominal Supply Current | 600uA |
| Number of Channels | 2 |
| Number of Elements | 2 |
| Operating Supply Voltage | 36V |
| Output Current | 18mA |
| Output Current per Channel | 18mA |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Dissipation | 570mW |
| Quiescent Current | 2.5mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Response Time | 1400ns |
| RoHS Compliant | Yes |
| Supply Current | 1mA |
| Technology | BIPOLAR |
| Voltage Gain | 106.02dB |
| Weight | 0.851g |
| Width | 6.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi LM393N Datasheet
Download the complete datasheet for Onsemi LM393N to view detailed technical specifications.
No datasheet is available for this part.

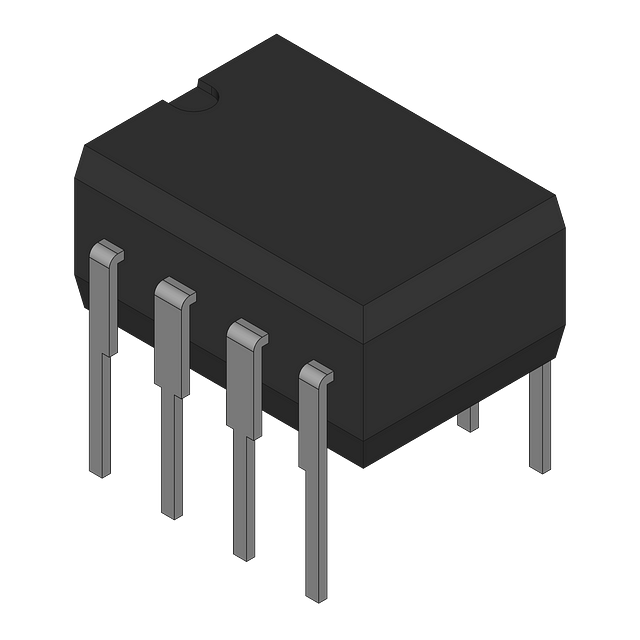

Product Images
