Single-channel, low-power CMOS operational amplifier featuring a 1.4MHz gain bandwidth product and 1.5V/µs slew rate. This surface-mount device offers rail-to-rail output, a wide operating voltage range from 1.35V to 5.5V, and a low 100µA operating supply current. Key specifications include a 70dB voltage gain, 50dB common mode rejection ratio, and 50dB power supply rejection ratio. Designed for a broad temperature range of -40°C to 125°C, it is packaged in a compact SC case.
PackageSC
Current80uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi LMV321AP5X technical specifications.
General
Bandwidth
1.4MHz
Package/Case
SC
Common Mode Rejection Ratio
50dB
Gain Bandwidth Product
1.4MHz
Height
1mm
Input Bias Current
1nA
Input Offset Voltage (Vos)
7mV
Input Offset Voltage-Max
7mV
Lead Free
Lead Free
Length
2.2mm
Max Dual Supply Voltage
2.75V
Min Dual Supply Voltage
1.35V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
100uA
Operating Supply Voltage
5.5V
Output Current
34mA
Output Current per Channel
34mA
Package Quantity
1
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
50dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
1.5V/µs
Slew Rate-Nom
1.5V/µs
Supply Current
80uA
Technology
CMOS
Unity Gain Bandwidth Product
1.4MHz
Voltage Gain
70dB
Weight
23g
Width
1.35mm
Compliance
RoHS
Compliant
Datasheet
Onsemi LMV321AP5X Datasheet
Download the complete datasheet for Onsemi LMV321AP5X to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

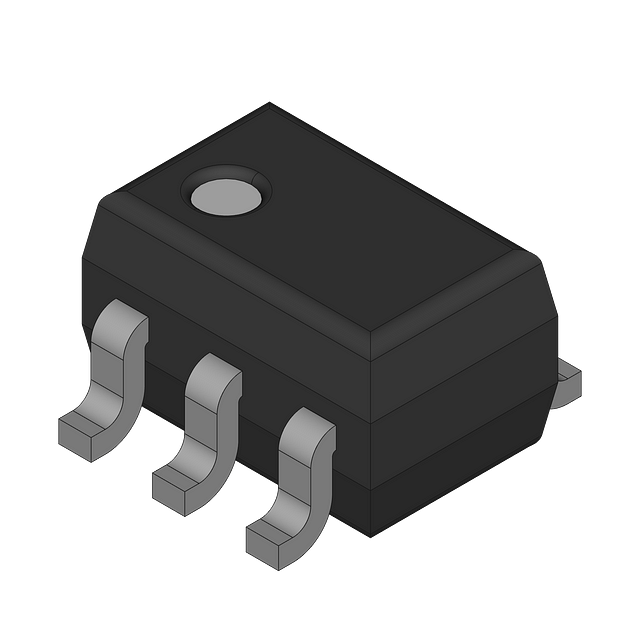

Product Images
