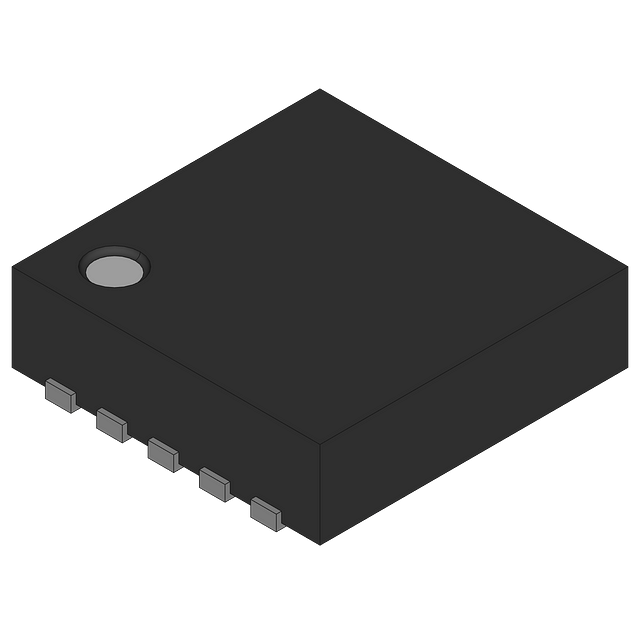

The LV8163QA-BH is a surface mount motor driver IC designed for brushless DC motors. It operates within a temperature range of -30°C to 95°C and is powered by a 5V supply voltage. The device can handle a maximum collector current of 700mA and a maximum power dissipation of 1.05kW. It is available in a 20-pin HVSON package and is compliant with RoHS regulations.
Checking distributor stock and pricing after the page loads.
| Fault Protection | Over Temperature |
| Halogen Free | Halogen Free |
| Height | 0.5mm |
| Interface | PWM |
| Lead Free | Lead Free |
| Length | 2.6mm |
| Max Collector Current | 700mA |
| Max Operating Temperature | 95°C |
| Min Operating Temperature | -30°C |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2V |
| Motor Type | Brushless DC (BLDC) |
| Mount | Surface Mount |
| Operating Supply Voltage | 5V |
| Output Current per Channel | 700mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 1.05kW |
| RoHS Compliant | Yes |
| Supply Current | 1.6mA |
| Width | 2.6mm |
| RoHS | Compliant |
These are design resources that include the Onsemi LV8163QA-BH
Notice of discontinuance for various Onsemi products due to the closure of the 5-inch production line and the elimination of Hydrazine at the Niigata (OSNC) facility.
