Onsemi
LV8773-E
Stepping Motor Driver, PWM, Constant Current Control, PDIP28 26.75x11.2 / DIP28HC (500 mil), 20-FNFLD
PackageDIP
Current3.2mA
MountingThrough Hole
Power3W
Quick Jump:
Technical Specifications
Onsemi LV8773-E technical specifications.
General
| Package/Case | DIP |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Output Current | 2A |
| Max Supply Voltage | 32V |
| Min Supply Voltage | 9V |
| Motor Type | Stepper |
| Mount | Through Hole |
| Number of Outputs | 2 |
| Output Current | 2A |
| Package Quantity | 20 |
| Packaging | Rail/Tube |
| Power Dissipation | 3W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 3.2mA |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi LV8773-E Datasheet
Download the complete datasheet for Onsemi LV8773-E to view detailed technical specifications.
No datasheet is available for this part.

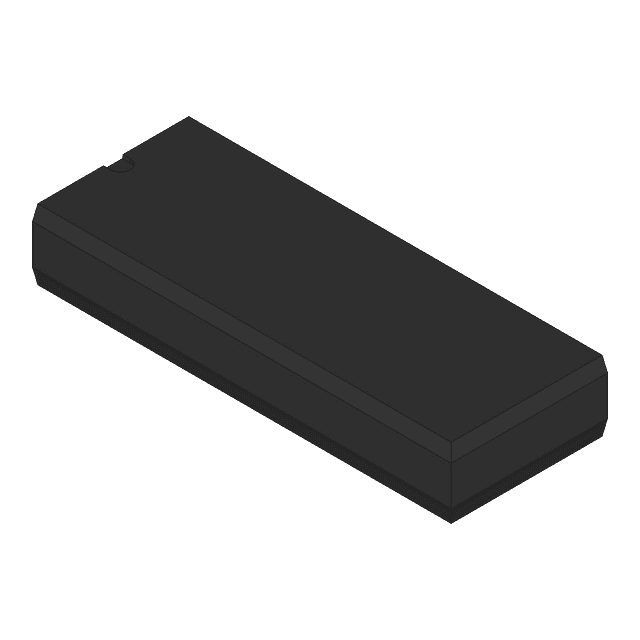

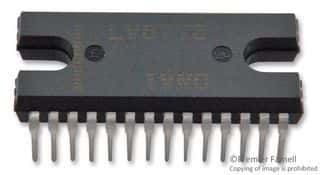

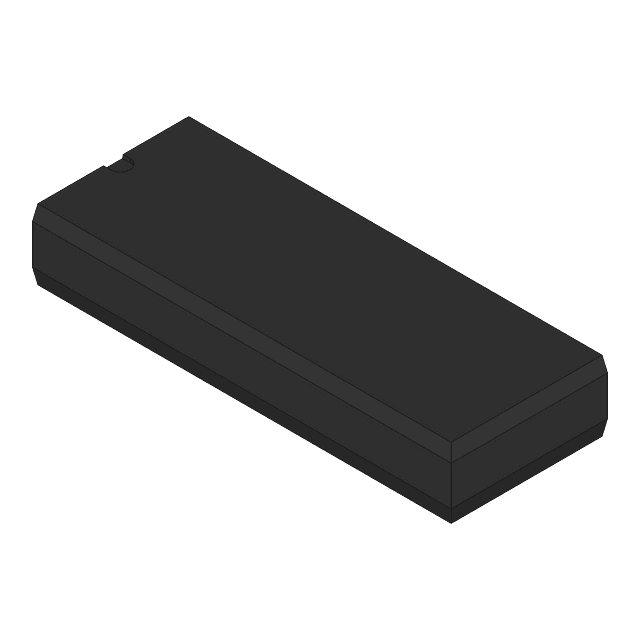

Product Images
