Technical Specifications
Onsemi M1MA141WKT1G technical specifications.
General
| Average Rectified Current | 100mA |
| Package/Case | SOT-323-3 |
| Current Rating | 100mA |
| Element Configuration | Common Cathode |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 150mW |
| Max Reverse Leakage Current | 100nA |
| Max Reverse Voltage (DC) | 40V |
| Max Surge Current | 500mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Reverse Recovery Time | 3ns |
| RoHS Compliant | Yes |
| DC Rated Voltage | 40V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi M1MA141WKT1G Datasheet
Download the complete datasheet for Onsemi M1MA141WKT1G to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

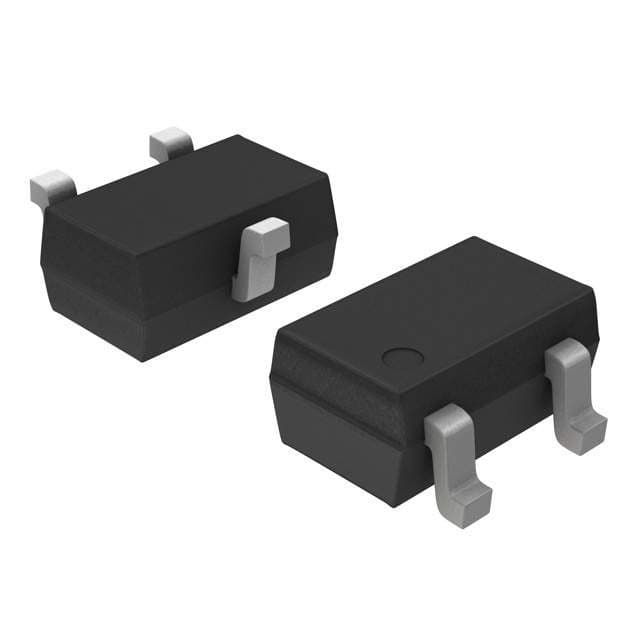

Product Images
