Switching Diode 80V, SC-70 (SOT-323) 3 LEAD, 3000-REEL
PackageSOT-323-3
Current Rating100mA
PolarityStandard
Quick Jump:
Technical Specifications
Onsemi M1MA142KT1 technical specifications.
General
| Average Rectified Current | 100mA |
| Package/Case | SOT-323-3 |
| Current Rating | 100mA |
| Element Configuration | Single |
| Forward Current | 100mA |
| Lead Free | Contains Lead |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 300mW |
| Max Repetitive Reverse Voltage (Vrrm) | 80V |
| Max Reverse Leakage Current | 100nA |
| Max Reverse Voltage (DC) | 80V |
| Max Surge Current | 1A |
| Output Current | 100mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 500mA |
| Polarity | Standard |
| Reverse Recovery Time | 3ns |
| RoHS Compliant | No |
| DC Rated Voltage | 80V |
Compliance
| RoHS | Not Compliant |
Datasheet
Onsemi M1MA142KT1 Datasheet
Download the complete datasheet for Onsemi M1MA142KT1 to view detailed technical specifications.
No datasheet is available for this part.

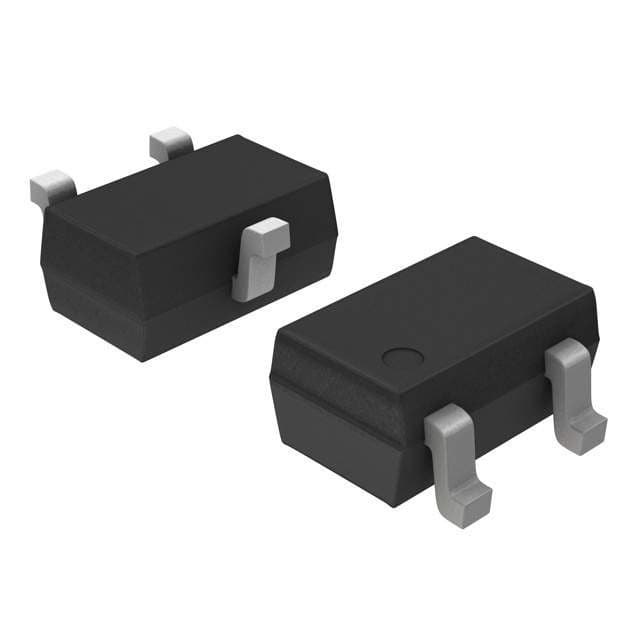

Product Images
