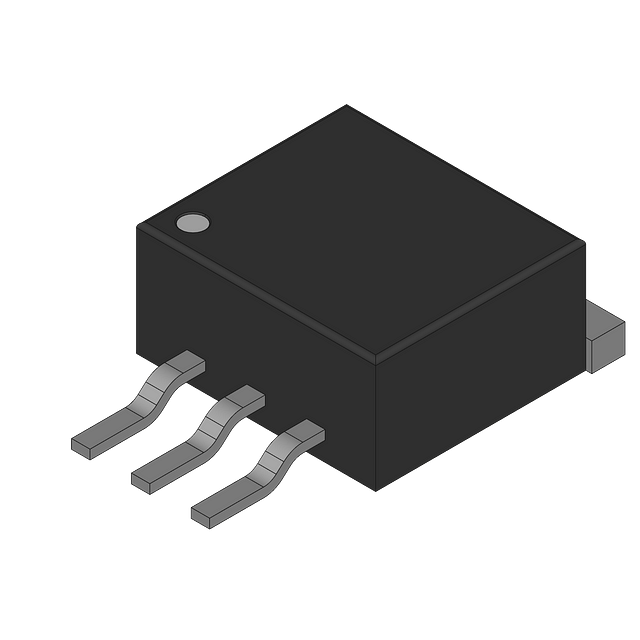

The MAC4DCNT4G is a Triac from Onsemi, packaged in a DPAK outline with a maximum operating temperature of 125°C and minimum of -40°C. It has a maximum repetitive reverse voltage of 800V and a maximum RMS current of 4A. The device is lead free and RoHS compliant, packaged on a tape and reel. It measures 6.73mm in length, 6.22mm in width, and 2.38mm in height.
Checking distributor stock and pricing after the page loads.
| Package/Case | DPAK |
| Halogen Free | Halogen Free |
| Height | 2.38mm |
| Hold Current | 35mA |
| Lead Free | Lead Free |
| Length | 6.73mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 800V |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 4A |
| RoHS Compliant | Yes |
| Width | 6.22mm |
| RoHS | Compliant |
