PackageTO-220AC
Current Rating10A
MountingThrough Hole
PolarityStandard
Quick Jump:
Technical Specifications
Onsemi MBR1035 technical specifications.
General
Average Rectified Current
10A
Package/Case
TO-220AC
Current Rating
10A
Forward Current
10A
Lead Free
Lead Free
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
35V
Max Reverse Current
100uA
Max Reverse Leakage Current
100uA
Max Reverse Voltage (DC)
35V
Max Surge Current
150A
Mount
Through Hole
Output Current
10A
Package Quantity
50
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
150A
Polarity
Standard
Radiation Hardening
No
RoHS Compliant
No
Series
SWITCHMODE™
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
Onsemi MBR1035 Datasheet
Download the complete datasheet for Onsemi MBR1035 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

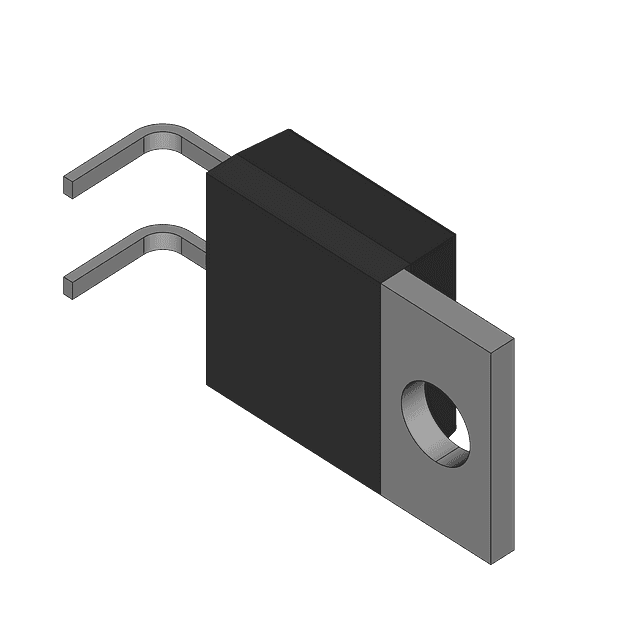

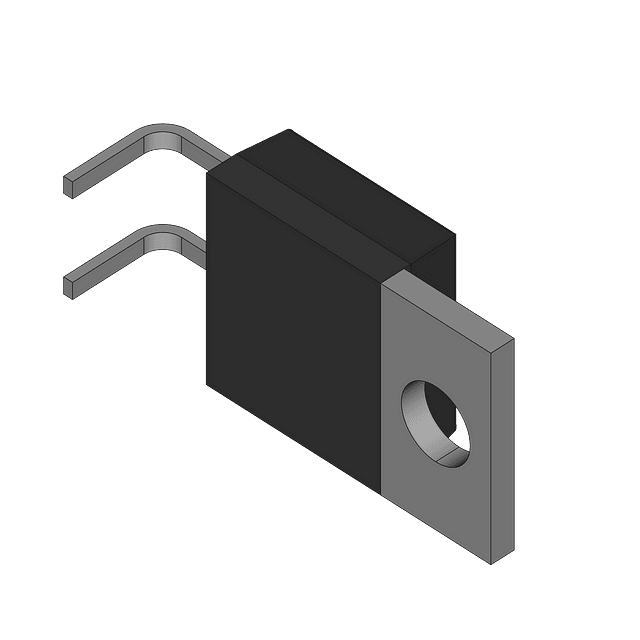

Product Images
