Technical Specifications
Onsemi MBR7030WT technical specifications.
General
| Average Rectified Current | 35A |
| Package/Case | TO-247-3 |
| Current Rating | 70A |
| Element Configuration | Common Cathode |
| Lead Free | Contains Lead |
| Max Forward Surge Current (Ifsm) | 500A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Reverse Leakage Current | 500uA |
| Max Reverse Voltage (DC) | 30V |
| Max Surge Current | 500A |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| RoHS Compliant | No |
| Series | SWITCHMODE™ |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Not Compliant |
Datasheet
Onsemi MBR7030WT Datasheet
Download the complete datasheet for Onsemi MBR7030WT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

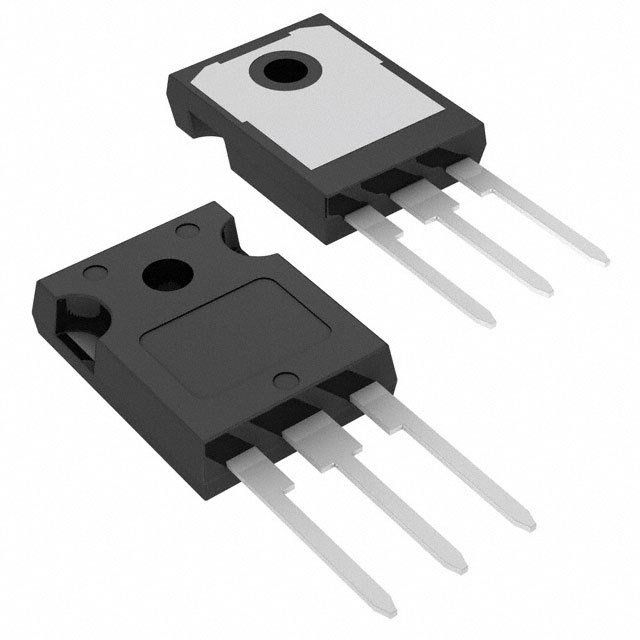

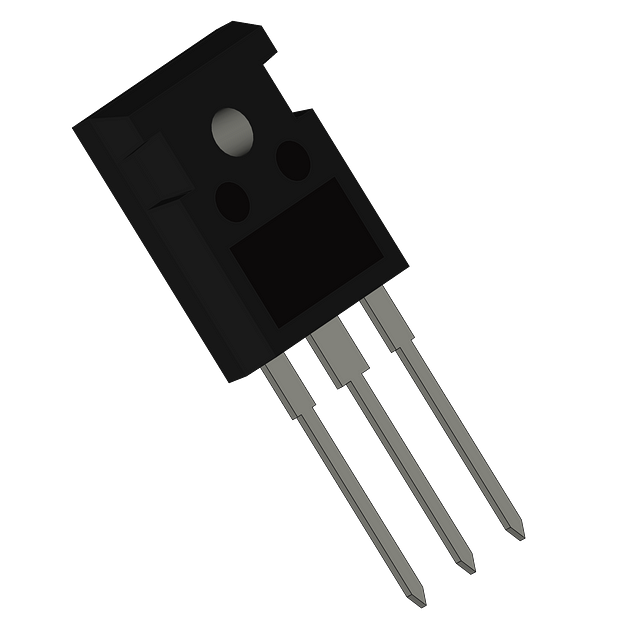

Product Images
