Single element Schottky rectifier with a 7.5A average rectified current and 45V repetitive reverse voltage. Features a 150A peak non-repetitive surge current and a maximum operating temperature of 150°C. Packaged in a TO-220AC through-hole mount with lead-free construction. RoHS compliant.
PackageTO-220AC
Current Rating7.5A
MountingThrough Hole
PolarityStandard
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Onsemi MBR745 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Onsemi MBR745 technical specifications.
General
| Average Rectified Current | 7.5A |
| Package/Case | TO-220AC |
| Current Rating | 7.5A |
| Element Configuration | Single |
| Forward Current | 7.5A |
| Height | 16.51mm |
| Lead Free | Lead Free |
| Length | 10.67mm |
| Max Forward Surge Current (Ifsm) | 150A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 45V |
| Max Reverse Current | 100uA |
| Max Reverse Leakage Current | 100uA |
| Max Reverse Voltage (DC) | 45V |
| Max Surge Current | 150A |
| Mount | Through Hole |
| Output Current | 7.5A |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Peak Non-Repetitive Surge Current | 150A |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SWITCHMODE™ |
| DC Rated Voltage | 45V |
| Weight | 2.16g |
| Width | 4.83mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MBR745 Datasheet
Download the complete datasheet for Onsemi MBR745 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

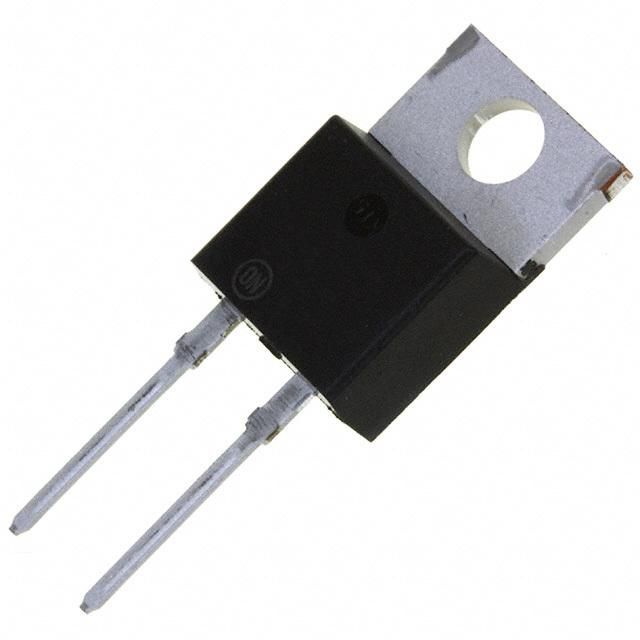

Product Images
