Single element, Schottky power rectifier with a 1A average rectified current and 10V maximum repetitive reverse voltage. Features a 1A forward current, 50A peak non-repetitive surge current, and a maximum operating temperature of 125°C. Surface mount package in DO-216AA, supplied on tape and reel. RoHS and Halogen Free compliant.
PackageDO-216AA
Current Rating1A
PolarityStandard
Quick Jump:
Technical Specifications
Onsemi MBRM110LT3G technical specifications.
General
| Average Rectified Current | 1A |
| Package/Case | DO-216AA |
| Current Rating | 1A |
| Element Configuration | Single |
| Forward Current | 1A |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Max Forward Surge Current (Ifsm) | 50A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 10V |
| Max Reverse Current | 500uA |
| Max Reverse Leakage Current | 500uA |
| Max Reverse Voltage (DC) | 10V |
| Max Surge Current | 50A |
| Output Current | 1A |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 50A |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| DC Rated Voltage | 10V |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MBRM110LT3G Datasheet
Download the complete datasheet for Onsemi MBRM110LT3G to view detailed technical specifications.
No datasheet is available for this part.

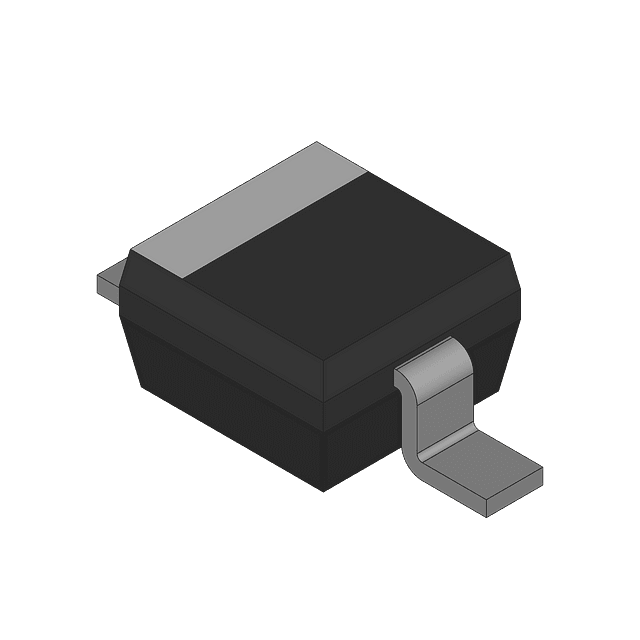

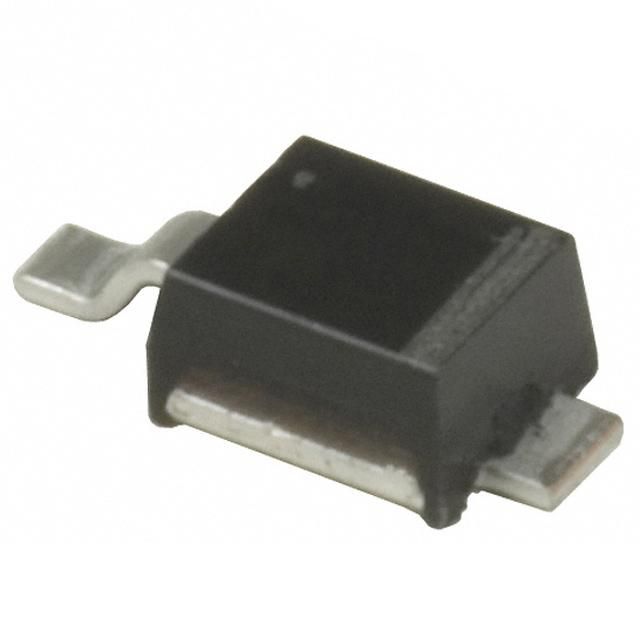

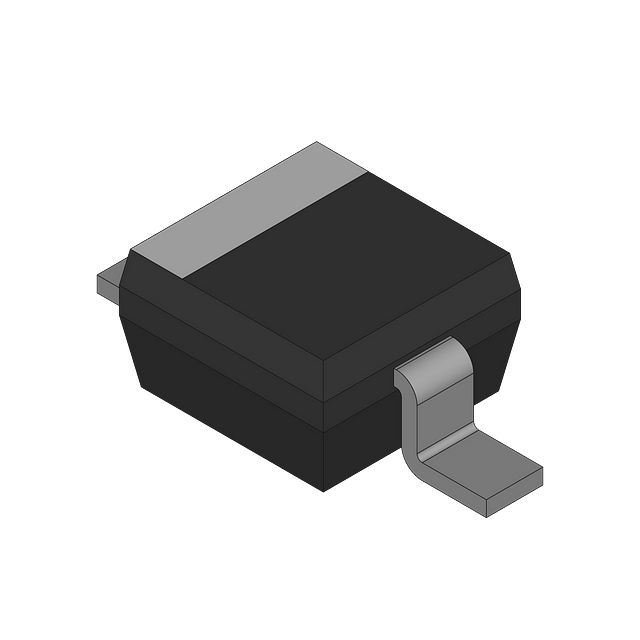

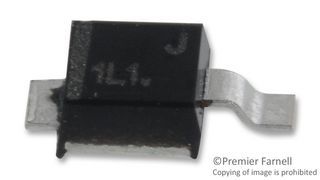

Product Images
