Quick Jump:
Technical Specifications
Onsemi MBRS190T3 technical specifications.
General
| Average Rectified Current | 2A |
| Package/Case | SMB |
| Current Rating | 1A |
| Element Configuration | Single |
| Lead Free | Contains Lead |
| Max Forward Surge Current (Ifsm) | 50A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Reverse Leakage Current | 500uA |
| Max Reverse Voltage (DC) | 90V |
| Max Surge Current | 50A |
| Output Current | 1A |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Standard |
| RoHS Compliant | No |
| DC Rated Voltage | 90V |
Compliance
| RoHS | Not Compliant |
Datasheet
Onsemi MBRS190T3 Datasheet
Download the complete datasheet for Onsemi MBRS190T3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

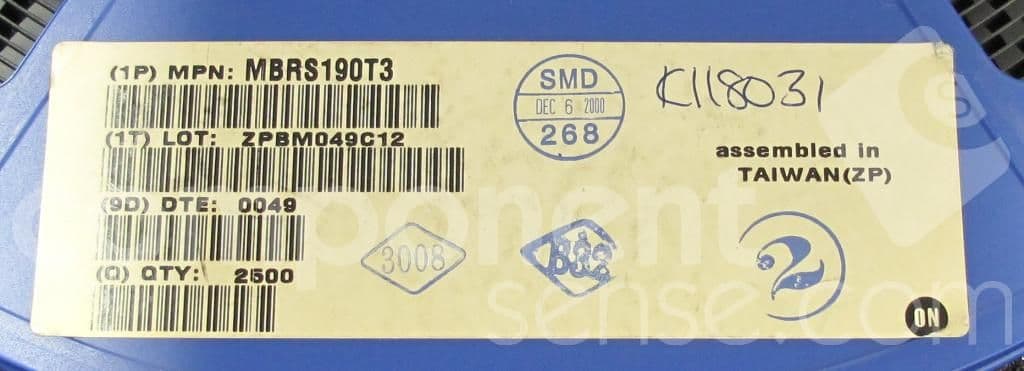

Product Images
