Technical Specifications
Onsemi MBRS4201T3 technical specifications.
General
| Average Rectified Current | 4A |
| Package/Case | SMC |
| Current Rating | 4A |
| Element Configuration | Single |
| Lead Free | Contains Lead |
| Max Forward Surge Current (Ifsm) | 100A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Reverse Leakage Current | 350nA |
| Max Reverse Voltage (DC) | 200V |
| Max Surge Current | 100A |
| Output Current | 4A |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Polarity | Standard |
| Reverse Recovery Time | 35ns |
| RoHS Compliant | No |
| DC Rated Voltage | 200V |
Compliance
| RoHS | Not Compliant |
Datasheet
Onsemi MBRS4201T3 Datasheet
Download the complete datasheet for Onsemi MBRS4201T3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

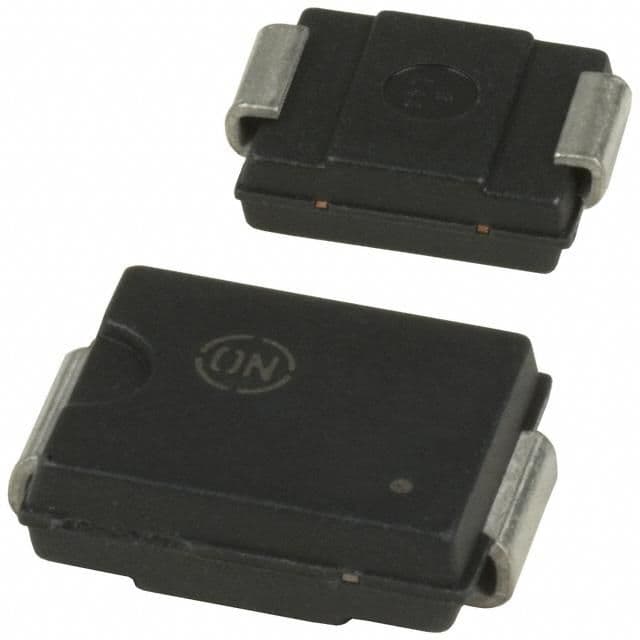

Product Images
