Active programmable delay line for clock and timing applications. Features 1024 taps for precise delay adjustment from 0.01ns to 12.4ns, operating at frequencies up to 1.2GHz. Surface mountable in a 32-pin LQFP package, this component supports a supply voltage range of 3V to 3.6V and is RoHS compliant. Designed for operation between -40°C and 85°C.
Frequency1.2GHz
PackageLQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi MC100EP196FAG technical specifications.
General
Package/Case
LQFP
Collector Emitter Breakdown Voltage
-60V
Depth
7mm
Frequency
1.2GHz
Halogen Free
Halogen Free
Height
1.45mm
Lead Free
Lead Free
Length
7mm
Max Frequency
1.2GHz
Max Input Voltage
2.42V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Taps
1024
Number of Taps/Steps
1024
Package Quantity
250
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
100EP
Supply Voltage-Nom
3.6V
Termination
SMD/SMT
Weight
0.027302oz
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Onsemi MC100EP196FAG Datasheet
Download the complete datasheet for Onsemi MC100EP196FAG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

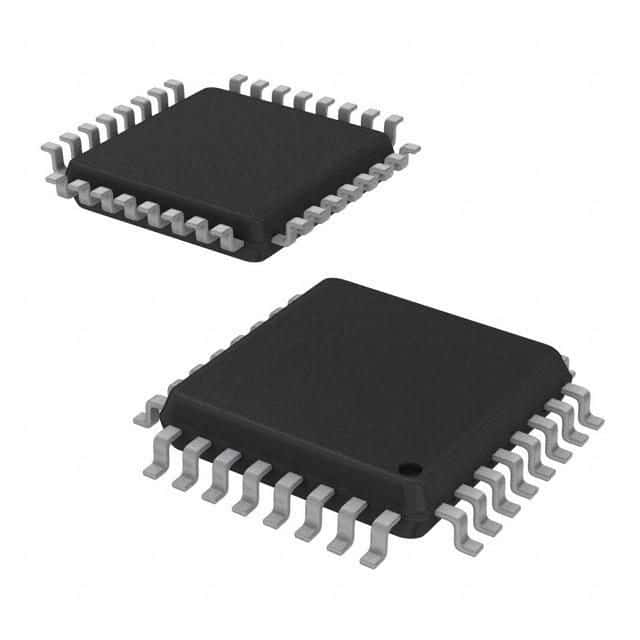

Product Images
