Dual LVTTL/LVCMOS to Differential LVPECL Translator, Surface Mount, TSSOP package (3.1x3.1x0.95mm). Features 2 channels, 2 bits, and 1 input. Operates from a 3V to 3.6V supply voltage with a typical 3.3V operating voltage. Offers a propagation delay of 0.675ns and output current of 50mA. This RoHS compliant component is halogen-free and designed for a temperature range of -40°C to 85°C.
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi MC100EPT22DTG technical specifications.
General
| Package/Case | TSSOP |
| Halogen Free | Halogen Free |
| Height | 0.95mm |
| High Level Output Current | -50mA |
| Lead Free | Lead Free |
| Length | 3.1mm |
| Logic Function | Translator |
| Low Level Output Current | 50mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Bits | 2 |
| Number of Channels | 2 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 3.3V |
| Output Current | 50mA |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Propagation Delay | 0.675ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 100EPT |
| Technology | ECL |
| Turn-On Delay Time | 0.675ns |
| Weight | 0.005573oz |
| Width | 3.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MC100EPT22DTG Datasheet
Download the complete datasheet for Onsemi MC100EPT22DTG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

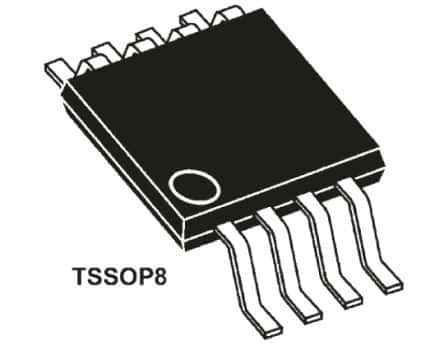

Product Images
