Onsemi
MC10E158FN
10E SERIES, 5 2 LINE TO 1 LINE MULTIPLEXER, COMPLEMENTARY OUTPUT, PQCC28, PLASTIC, LCC-28
PackagePLCC
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi MC10E158FN technical specifications.
General
Package/Case
PLCC
Independent Circuits
1
Lead Free
Contains Lead
Logic Function
Mux
Max Operating Temperature
85°C
Min Operating Temperature
0°C
Max Supply Voltage
5.7V
Min Supply Voltage
4.2V
Mount
Surface Mount
Number of Bits
5
Number of Input Lines
2
Number of Inputs
10
Number of Output Lines
1
Number of Outputs
5
Package Quantity
37
Packaging
Rail/Tube
Propagation Delay
0.65ns
RoHS Compliant
No
Series
10E
Supply Type
Dual
Throw Configuration
SPDT
Compliance
RoHS
Not Compliant
Datasheet
Onsemi MC10E158FN Datasheet
Download the complete datasheet for Onsemi MC10E158FN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

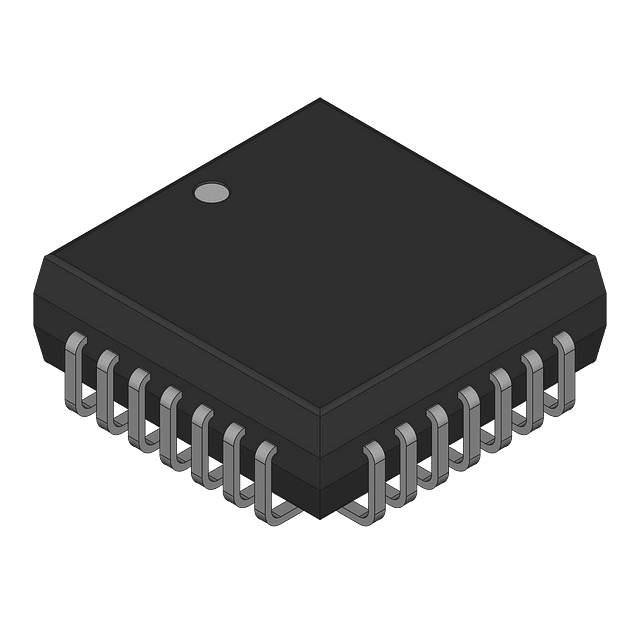

Product Images
