Onsemi
MC10E452FN
10E SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, COMPLEMENTARY OUTPUT, PQCC28, PLASTIC, LCC-28
PackagePLCC
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Onsemi MC10E452FN technical specifications.
General
Package/Case
PLCC
Independent Circuits
1
Input Type
DIFFERENTIAL
Lead Free
Contains Lead
Logic Function
D-Type
Max Operating Temperature
85°C
Min Operating Temperature
0°C
Max Supply Voltage
5.7V
Min Supply Voltage
4.2V
Mount
Surface Mount
Number of Bits
5
Number of Circuits
2
Number of Input Lines
2
Number of Output Lines
10
Package Quantity
37
Packaging
Rail/Tube
Polarity
Non-Inverting
Propagation Delay
0.85ns
RoHS Compliant
No
Series
10E
Turn-On Delay Time
600ps
Compliance
RoHS
Not Compliant
Datasheet
Onsemi MC10E452FN Datasheet
Download the complete datasheet for Onsemi MC10E452FN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

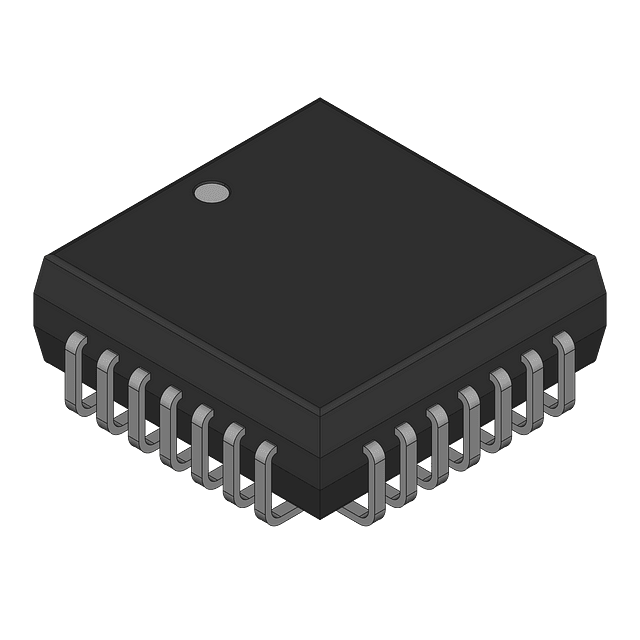

Product Images
