Dual ECL differential multiplexer, featuring 4 input lines and 2 output lines. Operates with a dual supply voltage range of 3V to 5.5V, supporting both 3.3V and 5.0V logic levels. Offers a fast propagation delay of 0.47ns and a turn-on delay time of 0.5ns. Packaged in a 20-pin QFN (4x4mm, 0.5mm pitch) for surface mounting, this RoHS and Halogen Free component is supplied in tubes of 92 units.
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi MC10EP56MNG technical specifications.
General
Package/Case
QFN
Halogen Free
Halogen Free
High Level Output Current
-50mA
Independent Circuits
1
Lead Free
Lead Free
Logic Function
Multiplexer, Mux
Low Level Output Current
50mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mode of Operation
DIFFERENTIAL
Mount
Surface Mount
Number of Input Lines
4
Number of Inputs
4
Number of Output Lines
2
Number of Outputs
2
Package Quantity
92
Packaging
Rail/Tube
Propagation Delay
0.47ns
Radiation Hardening
No
RoHS Compliant
Yes
Series
10EP
Supply Type
Dual
Turn-On Delay Time
0.5ns
Compliance
RoHS
Compliant
Datasheet
Onsemi MC10EP56MNG Datasheet
Download the complete datasheet for Onsemi MC10EP56MNG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

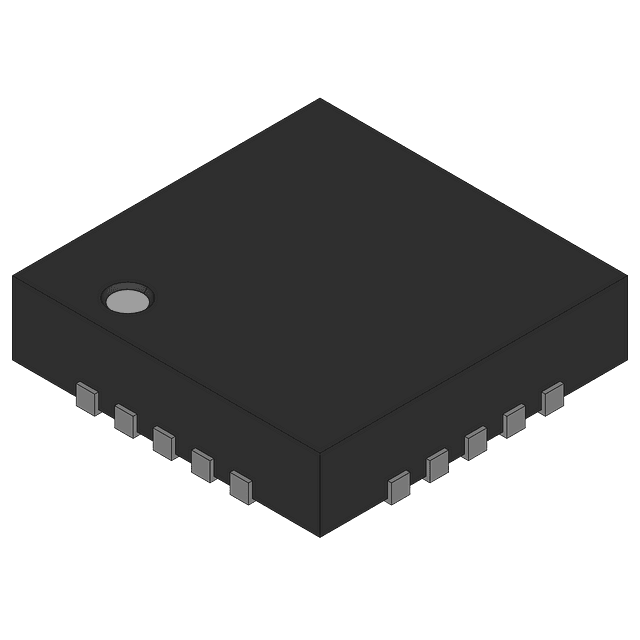

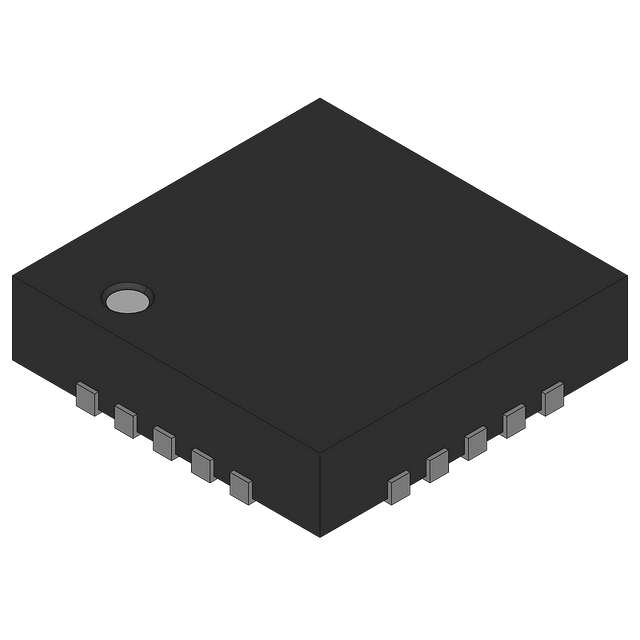

Product Images
