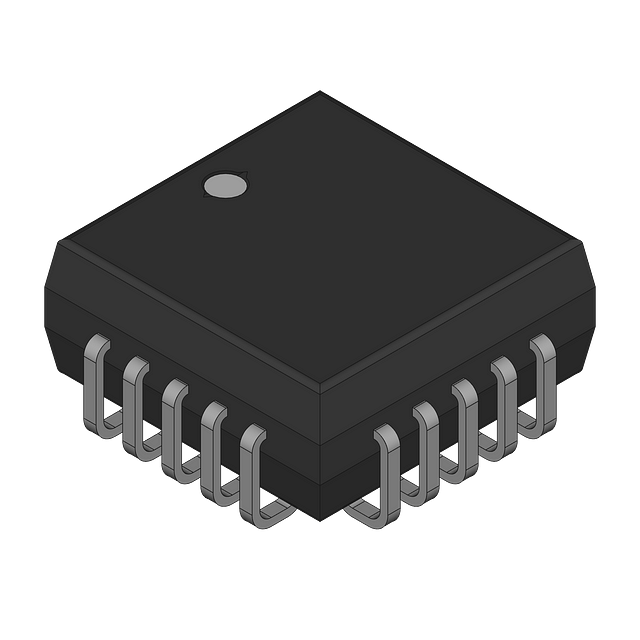

The MC10H116FNR2 is a receiver IC from Onsemi, packaged in a PLCC case and designed for surface mount applications. It operates within a temperature range of 0°C to 75°C and has a maximum power dissipation of 85mW. The device is not RoHS compliant and contains lead, making it a non-lead-free component.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi MC10H116FNR2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Onsemi MC10H116FNR2 technical specifications.
| Package/Case | PLCC |
| Lead Free | Contains Lead |
| Logic Function | Receiver |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 85mW |
| Max Supply Voltage | -5.46V |
| Min Supply Voltage | -4.94V |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | No |
| Series | 10H |
| Supply Current | 21mA |
| RoHS | Not Compliant |
Download the complete datasheet for Onsemi MC10H116FNR2 to view detailed technical specifications.
