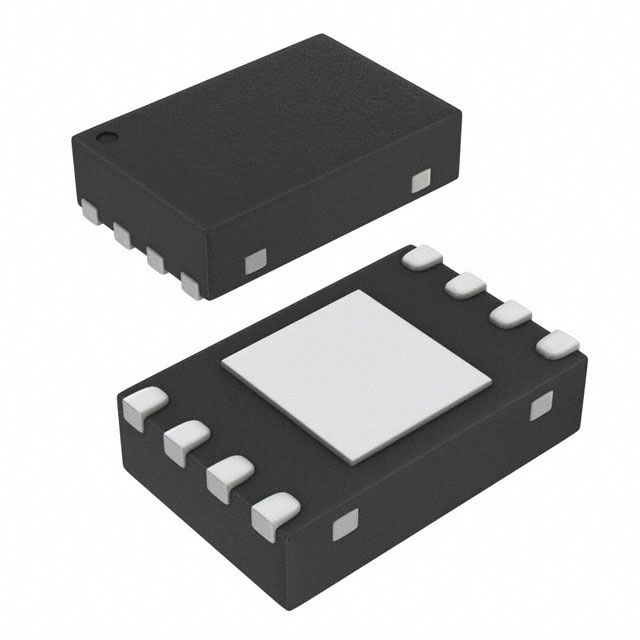

High-performance prescaler IC operating from 100MHz to 1.1GHz. Features CML input and a single output with 800mV nominal voltage. Supports 3.3V and 5V operation with a 2.7V to 5.5V supply range. Packaged in a compact 2mm x 2mm x 0.95mm DFN surface-mount package, this component is halogen and lead-free, RoHS compliant, and ideal for demanding clock and timing applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi MC12093MNR4G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Onsemi MC12093MNR4G technical specifications.
| Package/Case | DFN |
| Frequency | 1.1GHz |
| Halogen Free | Halogen Free |
| Height | 0.95mm |
| Input | CML |
| Lead Free | Lead Free |
| Length | 2mm |
| Max Frequency | 1.1GHz |
| Min Frequency | 100MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Nominal Output Voltage | 800mV |
| Number of Circuits | 1 |
| Number of Outputs | 1 |
| Operating Supply Current | 3mA |
| Operating Supply Voltage | 5V |
| Output Voltage | 800mV |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 4.5mA |
| Weight | 0.001319oz |
| Width | 2mm |
| RoHS | Compliant |
