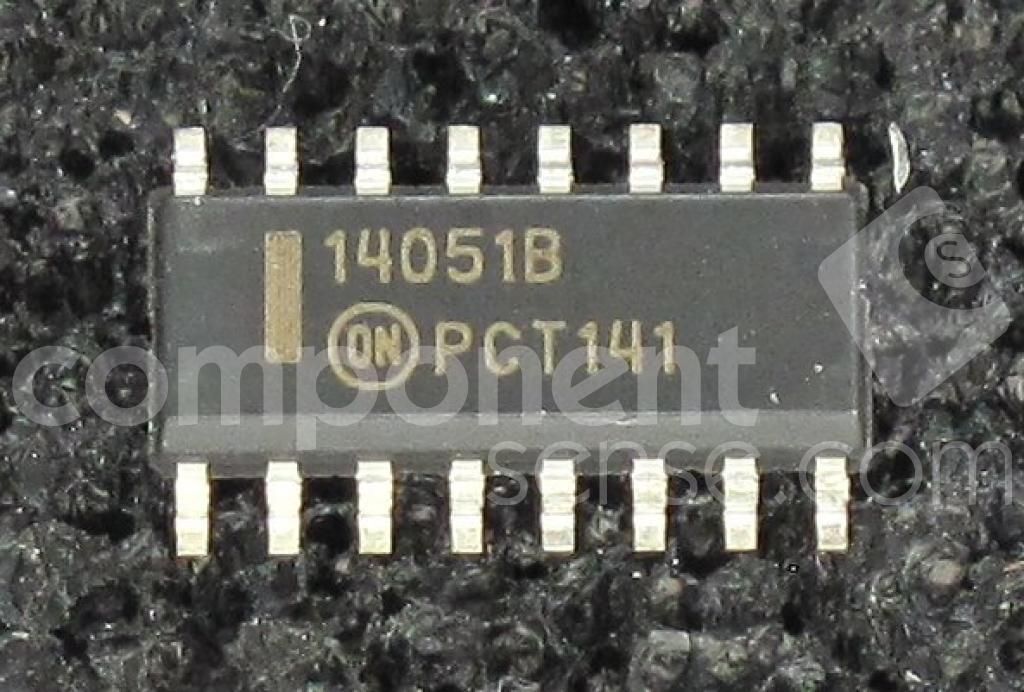

The MC14051BD is a single SP8T switch from Onsemi, with a bandwidth of 17MHz and propagation delay of 90ns. It operates over a temperature range of -55°C to 125°C and can handle up to 500mW of power dissipation. The device is packaged in a SOIC-16 plastic package and is not RoHS compliant. It has a high level output current of 25mA and a low level output current of 25mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi MC14051BD datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Onsemi MC14051BD technical specifications.
| Bandwidth | 17MHz |
| Package/Case | SOIC |
| Height | 1.5mm |
| High Level Output Current | 25mA |
| Lead Free | Contains Lead |
| Length | 10mm |
| Low Level Output Current | 25mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500mW |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Switches | 1 |
| Package Quantity | 48 |
| Packaging | Rail/Tube |
| Propagation Delay | 90ns |
| RoHS Compliant | No |
| Throw Configuration | SP8T |
| Turn-Off Delay Time | 700ns |
| Turn-On Delay Time | 700ns |
| Width | 4mm |
| RoHS | Not Compliant |
