The MC14490FG is a 6-bit logic IC with 7 input and 7 output lines. It operates within a temperature range of -55°C to 125°C and is RoHS compliant. The device has a maximum power dissipation of 500mW and a maximum supply voltage of 18V. It is packaged in a SOIC-16 package and is suitable for surface mount applications.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi MC14490FG technical specifications.
General
| Package/Case | SOIC |
| Height | 1.85mm |
| Lead Free | Lead Free |
| Length | 10.5mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500mW |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Bits | 6 |
| Number of Input Lines | 7 |
| Number of Output Lines | 7 |
| Output Voltage | 17.5V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Propagation Delay | 240ns |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 4000 |
| Width | 5.45mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MC14490FG Datasheet
Download the complete datasheet for Onsemi MC14490FG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

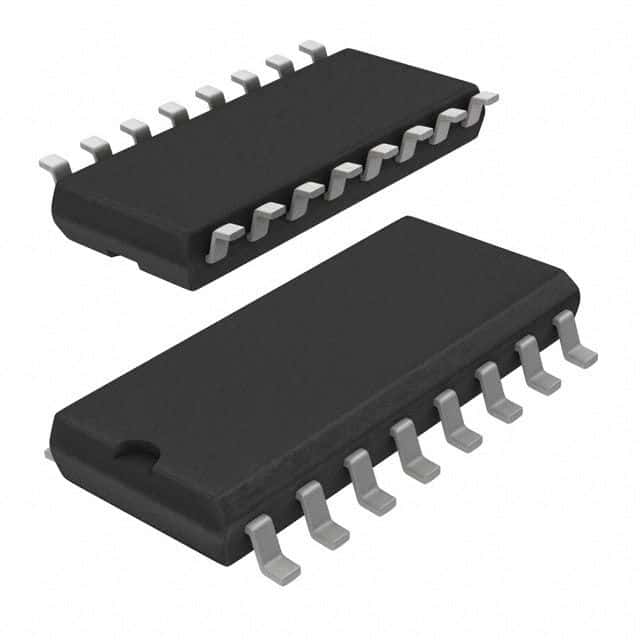

Product Images
