Dual-element monostable multivibrator, CMOS technology, operating from 3V to 18V supply voltage. Features two independent circuits with a maximum supply current of 20µA. Offers a propagation delay of 650ns and output current of 8.8mA. Packaged in a 16-pin SOIC surface mount with dimensions of 10mm length, 4mm width, and 1.5mm height. Operates across a wide temperature range of -55°C to 125°C, meeting RoHS and Lead-Free standards.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi MC14528BDG technical specifications.
General
| Package/Case | SOIC |
| Halogen Free | Halogen Free |
| Height | 1.5mm |
| High Level Output Current | -4.2mA |
| Independent Circuits | 2 |
| Lead Free | Lead Free |
| Length | 10mm |
| Logic Function | Multivibrator |
| Low Level Output Current | 4.2mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Current | 20uA |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Elements | 2 |
| Number of Functions | 2 |
| Operating Supply Voltage | 12V |
| Output Characteristics | DIFFERENTIAL |
| Output Current | 8.8mA |
| Packaging | Rail/Tube |
| Propagation Delay | 650ns |
| Quiescent Current | 20uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Schmitt Trigger Input | No |
| Series | 4000B |
| Supply Voltage-Nom | 18V |
| Technology | CMOS |
| Turn-On Delay Time | 650ns |
| Weight | 0.023492oz |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MC14528BDG Datasheet
Download the complete datasheet for Onsemi MC14528BDG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

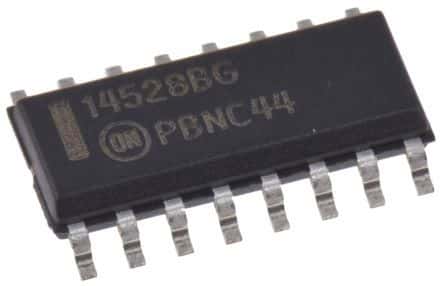

Product Images
