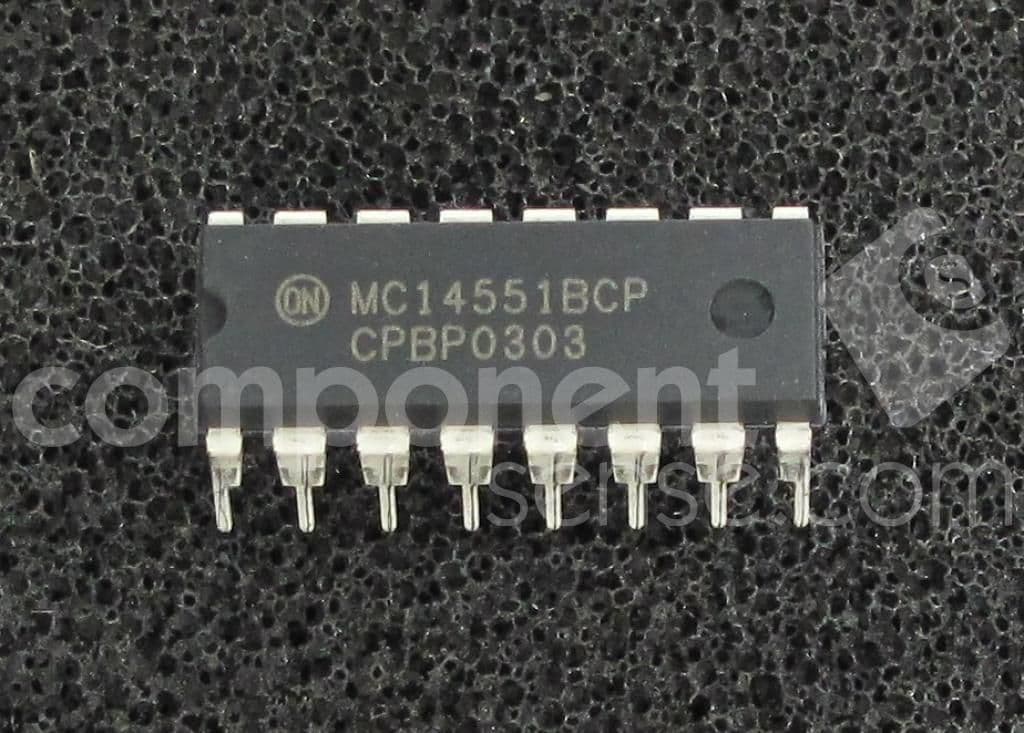

The MC14551BCP is a 4-channel non-inverting multiplexer from Onsemi. It operates over a temperature range of -55°C to 125°C and can handle a maximum supply voltage of 18V. The device is packaged in a PDIP-16 package and is suitable for through-hole mounting. The multiplexer has a bandwidth of 17MHz and a propagation delay of 90ns.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi MC14551BCP datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Onsemi MC14551BCP technical specifications.
| Bandwidth | 17MHz |
| Package/Case | PDIP |
| Lead Free | Contains Lead |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500mW |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 3V |
| Mount | Through Hole |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Inputs | 8 |
| Number of Outputs | 4 |
| Number of Switches | 4 |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Power Dissipation | 500mW |
| Propagation Delay | 90ns |
| RoHS Compliant | No |
| Throw Configuration | DPST |
| RoHS | Not Compliant |
Download the complete datasheet for Onsemi MC14551BCP to view detailed technical specifications.
