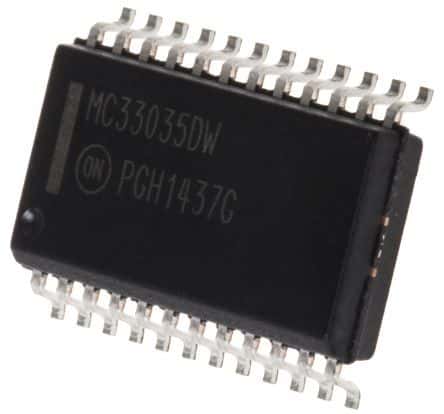

Brushless DC motor controller featuring analog interface, 3 channels, and 6 outputs. Operates with supply voltages from 10V to 30V, delivering up to 40V output voltage and 50mA output current. Designed for surface mounting in a SOIC package, this component offers a maximum power dissipation of 650mW and operates within a temperature range of -40°C to 85°C. It is RoHS compliant and halogen-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi MC33035DWG datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOIC |
| Halogen Free | Halogen Free |
| Height | 2.36mm |
| Interface | Analog |
| Lead Free | Lead Free |
| Length | 15.54mm |
| Max Collector Current | 10mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 650mW |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 10V |
| Motor Type | Brushless DC (BLDC) |
| Mount | Surface Mount |
| Number of Channels | 3 |
| Number of Outputs | 6 |
| Output Current | 50mA |
| Output Voltage | 40V |
| Package Quantity | 30 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 20mA |
| Width | 7.6mm |
| RoHS | Compliant |
