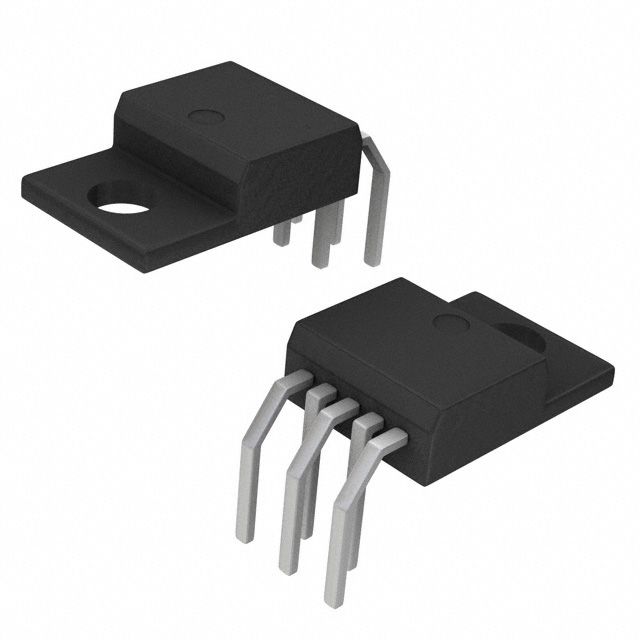

The MC33166THG is a 40V adjustable DC/DC controller from Onsemi, packaged in a TO-220-5 case and designed for through-hole mounting. It operates over a temperature range of -40°C to 85°C and is RoHS compliant. The device has a maximum output current of 3A and is suitable for use in a variety of power management applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi MC33166THG datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Onsemi MC33166THG technical specifications.
| Package/Case | TO-220-5 |
| Efficiency | 83.8% |
| Lead Free | Lead Free |
| Max Input Voltage | 40V |
| Min Input Voltage | 7.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3A |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Operating Supply Voltage | 40V |
| Output Current | 3A |
| Output Type | Adjustable |
| Output Voltage | 40V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| RoHS | Compliant |
