Dual operational amplifier featuring a 5MHz bandwidth and 2V/µs slew rate. This general-purpose op-amp offers low power consumption with a 1.7mA operating supply current and a wide operating voltage range from 2V to 18V (dual) or up to 36V (single). It boasts excellent noise performance with an 80dB common mode rejection ratio and 80dB power supply rejection ratio. The component is housed in a compact SOIC-8 narrow body package, suitable for surface-mount applications.
Frequency100kHz
PackageSOIC
Current900uA
Quick Jump:
Technical Specifications
Onsemi MC33178DR2G technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
5MHz
Package/Case
SOIC
Common Mode Rejection Ratio
80dB
Gain Bandwidth Product
5MHz
Halogen Free
Halogen Free
Height
0.059inch
Input Bias Current
500nA
Input Offset Voltage (Vos)
3mV
Input Offset Voltage-Max
4mV
Lead Free
Lead Free
Length
0.196inch
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
2V
Max Frequency
100kHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
36V
Nominal Gain Bandwidth Product
5MHz
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
1.7mA
Operating Supply Voltage
18V
Output Current
80mA
Output Current per Channel
100mA
Output Type
PUSH-PULL
Package Quantity
1
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
80dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
2V/µs
Slew Rate-Nom
2V/µs
Supply Current
900uA
Technology
BIPOLAR
Unity Gain Bandwidth Product
5MHz
Voltage Gain
106.02dB
Width
0.157inch
Compliance
RoHS
Compliant
Datasheet
Onsemi MC33178DR2G Datasheet
Download the complete datasheet for Onsemi MC33178DR2G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

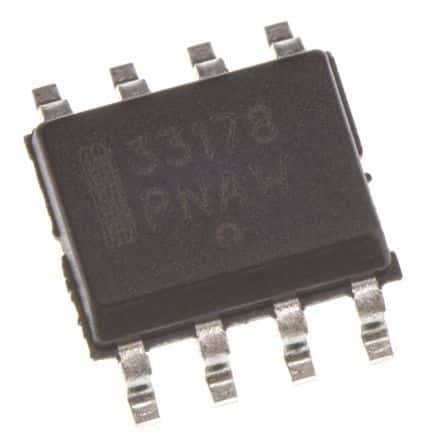

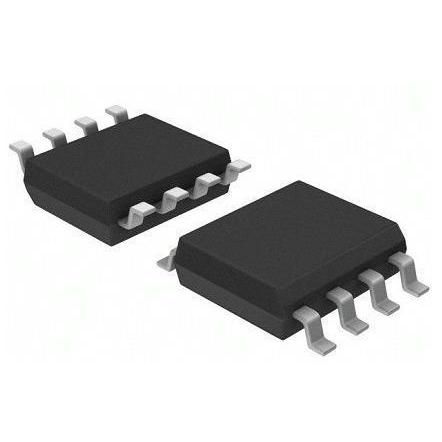

Product Images
