Adjustable DC-DC controller and regulator for non-inverting, inverting, step-up, and step-down applications. Features a wide input voltage range of 3V to 40V and an adjustable output voltage from 1.25V to 40V with a maximum output current of 1.5A. Operates with a maximum switching frequency of 100kHz and is housed in a through-hole 8-pin PDIP package. This RoHS compliant component is designed for a temperature range of 0°C to 70°C.
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Onsemi MC34063AP1G technical specifications.
General
| Package/Case | PDIP |
| Halogen Free | Halogen Free |
| Height | 3.44mm |
| Lead Free | Lead Free |
| Length | 10.16mm |
| Max Input Voltage | 40V |
| Min Input Voltage | 3V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 1.5A |
| Max Output Voltage | 40V |
| Min Output Voltage | 1.25V |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Current | 1.5A |
| Output Type | Adjustable |
| Output Voltage | 40V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Switching Frequency-Max | 100kHz |
| Synchronous Rectifier | No |
| Width | 6.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MC34063AP1G Datasheet
Download the complete datasheet for Onsemi MC34063AP1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

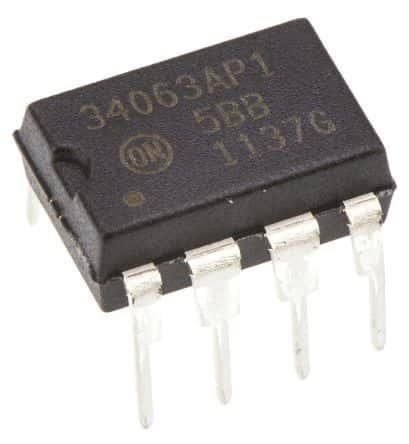

Product Images
