Quad operational amplifier featuring a 4.5MHz gain bandwidth product and 13V/µs slew rate. This general-purpose op-amp supports single supply operation from 3.0V to 44V or dual supplies from ±1.5V to ±22V. It offers a 100dB voltage gain, 70dB CMRR, and 70dB PSRR, with an input bias current of 500nA and input offset voltage of 5mV. The component is housed in a RoHS compliant, halogen-free SOIC-14 package with dimensions of 8.75mm length, 4mm width, and 1.5mm height.
PackageSOIC
Current7.6mA
Quick Jump:
Technical Specifications
Onsemi MC34074DG technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
4.5MHz
Package/Case
SOIC
Common Mode Rejection Ratio
70dB
Gain Bandwidth Product
4.5MHz
Halogen Free
Halogen Free
Height
1.5mm
Input Bias Current
500nA
Input Offset Voltage (Vos)
5mV
Input Offset Voltage-Max
5mV
Lead Free
Lead Free
Length
8.75mm
Max Dual Supply Voltage
22V
Min Dual Supply Voltage
1.5V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
44V
Min Supply Voltage
3V
Nominal Gain Bandwidth Product
4.5MHz
Number of Amplifiers
4
Number of Channels
4
Number of Circuits
4
Number of Elements
4
Operating Supply Current
1.9mA
Operating Supply Voltage
22V
Output Current
30mA
Output Current per Channel
30mA
Package Quantity
55
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
70dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
13V/µs
Slew Rate-Nom
13V/µs
Supply Current
7.6mA
Technology
BIPOLAR
Unity Gain Bandwidth Product
4.5MHz
Voltage Gain
100dB
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Onsemi MC34074DG Datasheet
Download the complete datasheet for Onsemi MC34074DG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

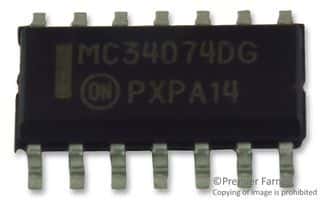

Product Images
