Quad operational amplifier featuring a 4.5MHz gain bandwidth product and 13V/µs slew rate. This general-purpose amplifier offers a 100dB voltage gain and 30mA output current per channel. Operating from a 1.5V to 22V dual supply, it has a maximum input offset voltage of 1mV and 100nA input bias current. Packaged in a 14-pin SOIC surface-mount configuration, it operates between 0°C and 70°C.
PackageSOIC
Current7.6mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi MC34074DR2 technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Package/Case | SOIC |
| Gain Bandwidth Product | 4.5MHz |
| Input Bias Current | 100nA |
| Input Offset Voltage (Vos) | 1mV |
| Lead Free | Contains Lead |
| Max Dual Supply Voltage | 22V |
| Min Dual Supply Voltage | 1.5V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Operating Supply Current | 1.9mA |
| Operating Supply Voltage | 22V |
| Output Current | 30mA |
| Output Current per Channel | 30mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | No |
| Slew Rate | 13V/µs |
| Supply Current | 7.6mA |
| Technology | BIPOLAR |
| Voltage Gain | 100dB |
Compliance
| RoHS | Not Compliant |
Datasheet
Onsemi MC34074DR2 Datasheet
Download the complete datasheet for Onsemi MC34074DR2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

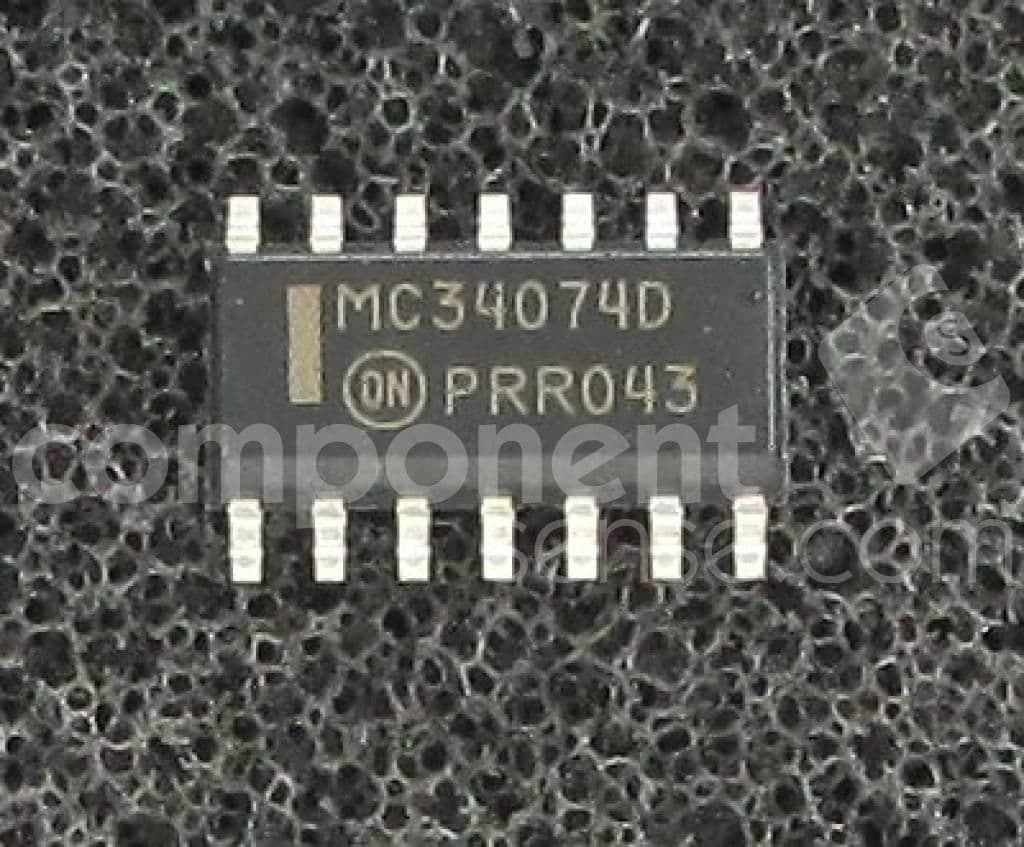

Product Images
