Technical Specifications
Onsemi MC74HC14AD technical specifications.
General
| Package/Case | SOIC |
| Height | 1.5mm |
| High Level Output Current | -5.2mA |
| Input Type | SCHMITT TRIGGER |
| Lead Free | Contains Lead |
| Length | 8.75mm |
| Logic Function | Schmitt Trigger, Inverter |
| Low Level Output Current | 5.2mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Circuits | 6 |
| Number of Gates | 6 |
| Package Quantity | 55 |
| Packaging | Rail/Tube |
| Propagation Delay | 13ns |
| Quiescent Current | 1A |
| RoHS Compliant | No |
| Voltage | 6V |
| Width | 4mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Onsemi MC74HC14AD Datasheet
Download the complete datasheet for Onsemi MC74HC14AD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

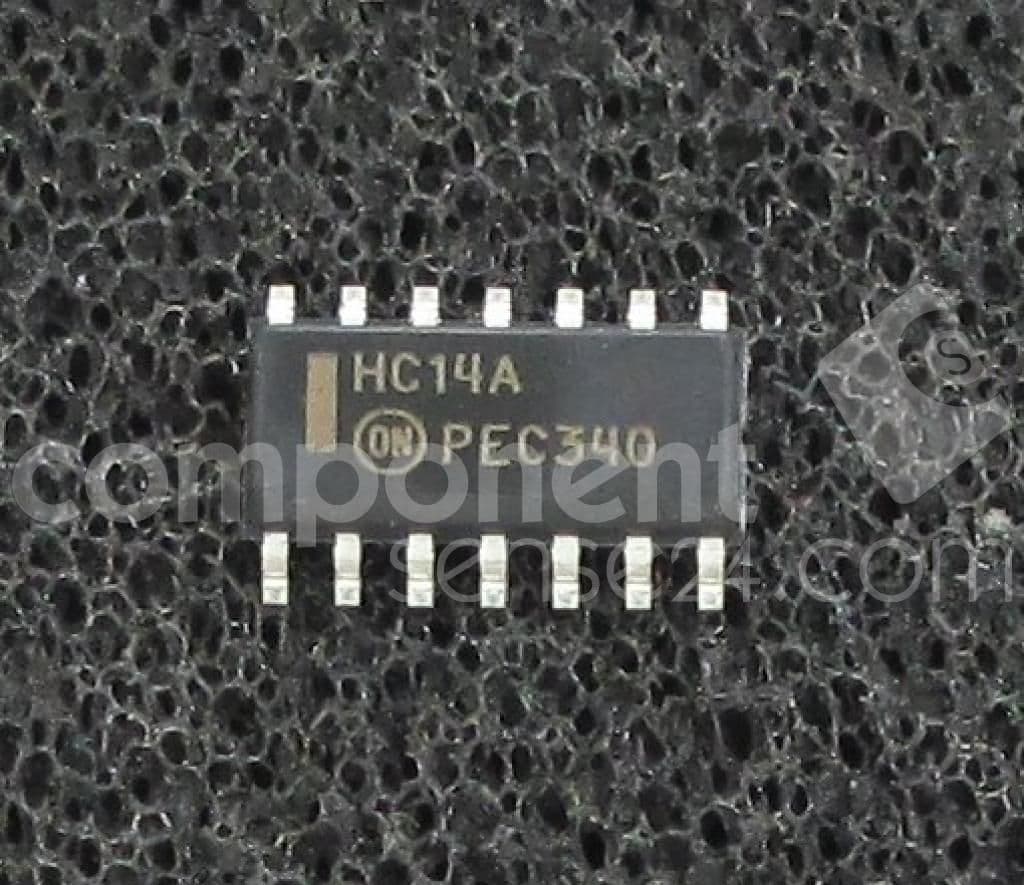

Product Images
