Octal 3-State Non-Inverting Buffer/Line Driver/Line Receiver, SOIC package, featuring 8 channels with 8 inputs and 8 outputs. This CMOS logic IC operates with a supply voltage range of 2V to 6V, offering a propagation delay of 165ns and a turn-on delay time of 96ns. It supports a high level output current of -7.8mA and a low level output current of 7.8mA, with a quiescent current of 4uA. The component is surface mountable, halogen-free, lead-free, and RoHS compliant, with a maximum operating temperature of 125°C.
PackageSOIC
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Onsemi MC74HC244ADWG technical specifications.
General
Package/Case
SOIC
Halogen Free
Halogen Free
Height
2.4mm
High Level Output Current
-7.8mA
Lead Free
Lead Free
Length
12.95mm
Logic Function
Buffer, Inverting, Receiver
Low Level Output Current
7.8mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
500mW
Max Supply Voltage
6V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Bits
8
Number of Bits per Element
4
Number of Channels
8
Number of Circuits
8
Number of Elements
2
Number of Functions
3
Number of Input Lines
8
Number of Inputs
8
Number of Output Lines
3
Number of Outputs
8
Output Type
3-STATE
Package Quantity
38
Packaging
Rail/Tube
Polarity
Non-Inverting
Propagation Delay
165ns
Quiescent Current
4uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74HC
Supply Voltage-Nom
6V
Technology
CMOS
Turn-On Delay Time
96ns
Width
7.6mm
Compliance
RoHS
Compliant
Datasheet
Onsemi MC74HC244ADWG Datasheet
Download the complete datasheet for Onsemi MC74HC244ADWG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

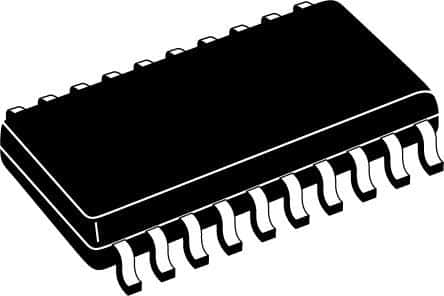

Product Images
