Single non-inverting buffer, CMOS technology, operating from 2V to 5.5V supply voltage. Features a 7.5ns propagation delay and 1uA quiescent current. TSOP package, surface mount, with 1 input and 1 output. Halogen and lead-free, RoHS compliant, with a max operating temperature of 125°C.
PackageTSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Onsemi MC74VHC1G50DTT1G technical specifications.
General
| Package/Case | TSOP |
| Halogen Free | Halogen Free |
| Height | 1mm |
| High Level Output Current | -8mA |
| Lead Free | Lead Free |
| Length | 3.1mm |
| Logic Function | Buffer, Inverting |
| Low Level Output Current | 8mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 200mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Bits | 1 |
| Number of Bits per Element | 1 |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Number of Functions | 1 |
| Number of Input Lines | 1 |
| Number of Inputs | 1 |
| Number of Output Lines | 1 |
| Number of Outputs | 1 |
| Output Type | TTL |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 7.5ns |
| Quiescent Current | 1uA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Schmitt Trigger Input | No |
| Series | 74VHC |
| Supply Voltage-Nom | 5.5V |
| Technology | CMOS |
| Turn-On Delay Time | 14.5ns |
| Width | 1.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi MC74VHC1G50DTT1G Datasheet
Download the complete datasheet for Onsemi MC74VHC1G50DTT1G to view detailed technical specifications.
No datasheet is available for this part.

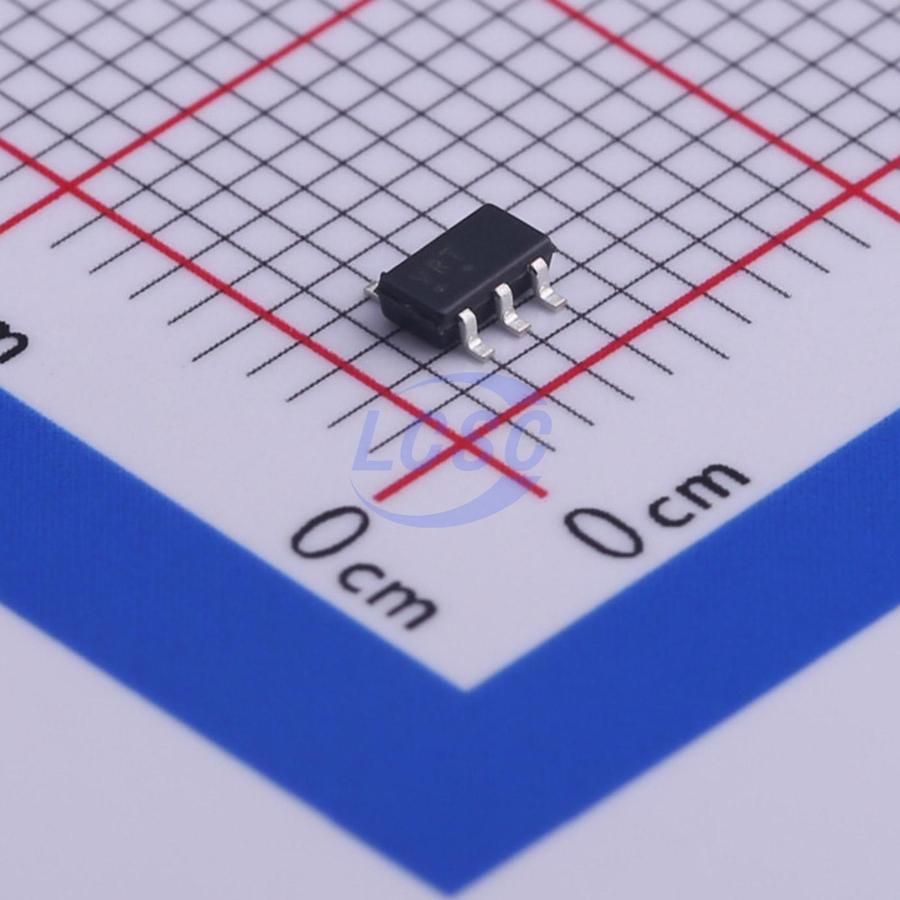

Product Images
